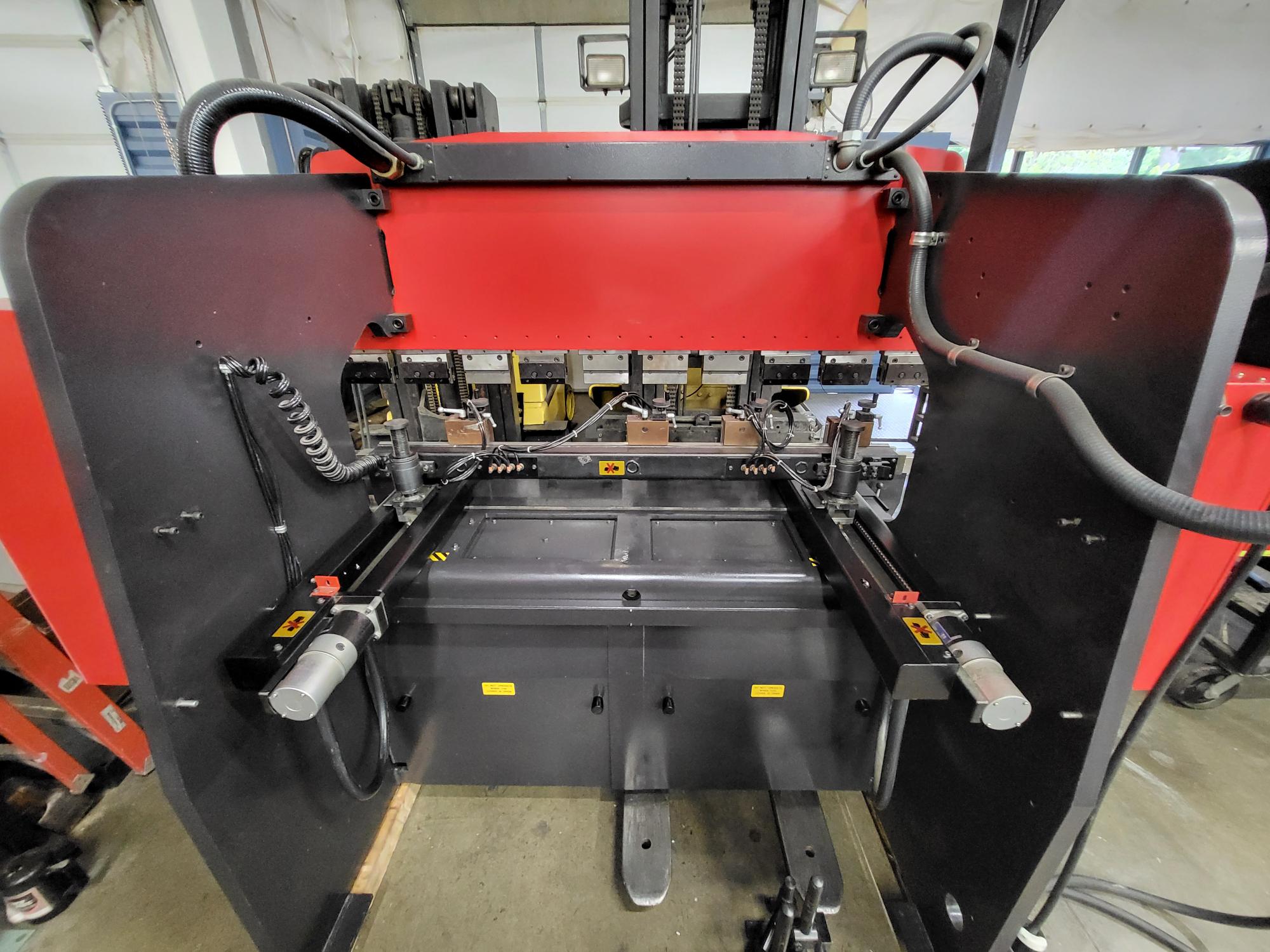

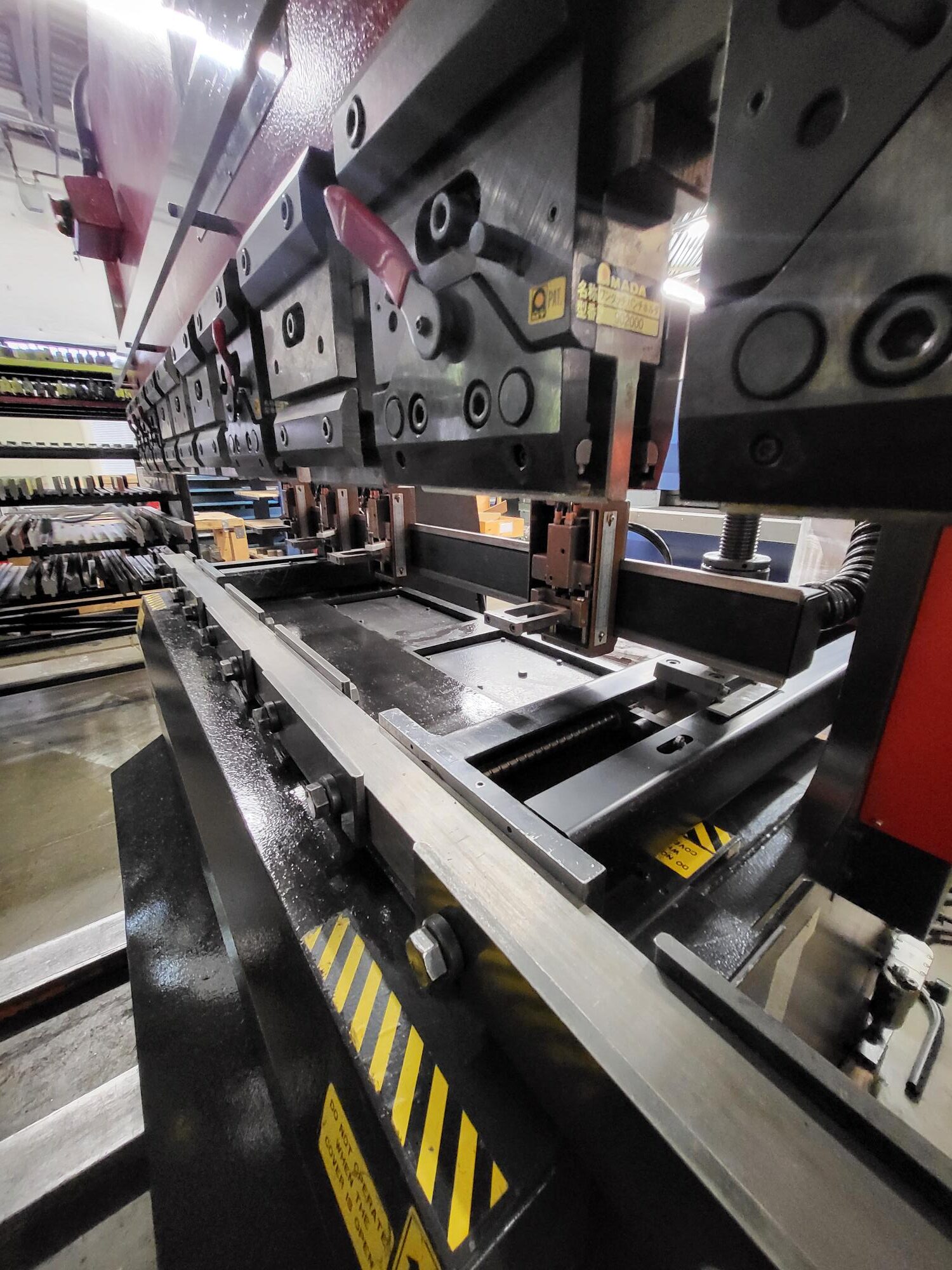

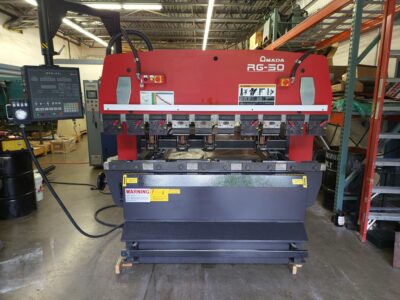

Amada RG-50 Hydraulic CNC Press Brake

Year:                                                               1997

Serial:                                                             509290

Model:                                                            RG 50

Specifications:

Maximum Tonnage                                        50 Tons

Maximum Bending Length                             82.1”

Between Uprights                                           59.9”

Open Height                                                   14.58”

Stroke                                                              3.94”

Throat                                                             15.76”

Oil Capacity                                                   13.46 Gallons

Machine Weight                                             6,600 lbs.

Dimensions                                                     79.6” L x 55.2” W x 75.5” H

CNC Control                                                   NC9EX II

For more information please contact us!
