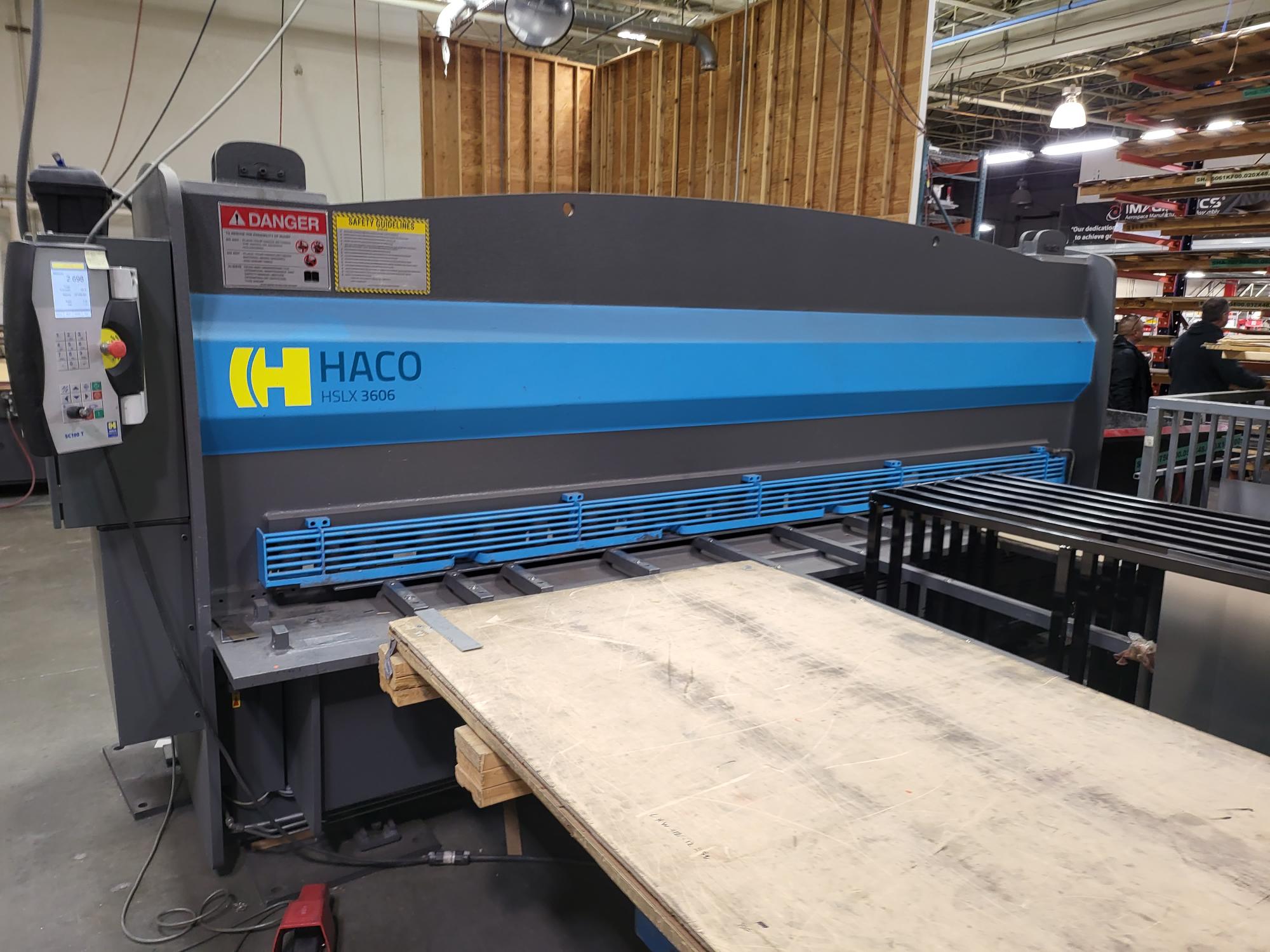

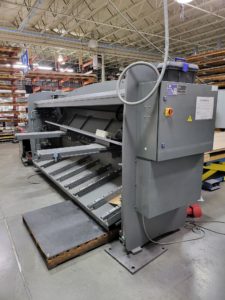

HACO CNC Shear HSLX 3606 12’ X ¼”

MFG 2019 W/Hydraulic Sheet Support System

The HSLX shears are just like our TS shears guillotine type shears. This means that the cutting action is a scissors cutting action. The hydraulic cylinders on the HSLX shears are positioned directly above the ram and push the ram in a downwards direction.

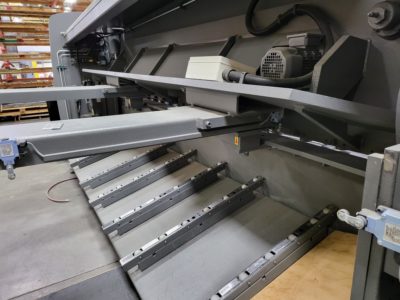

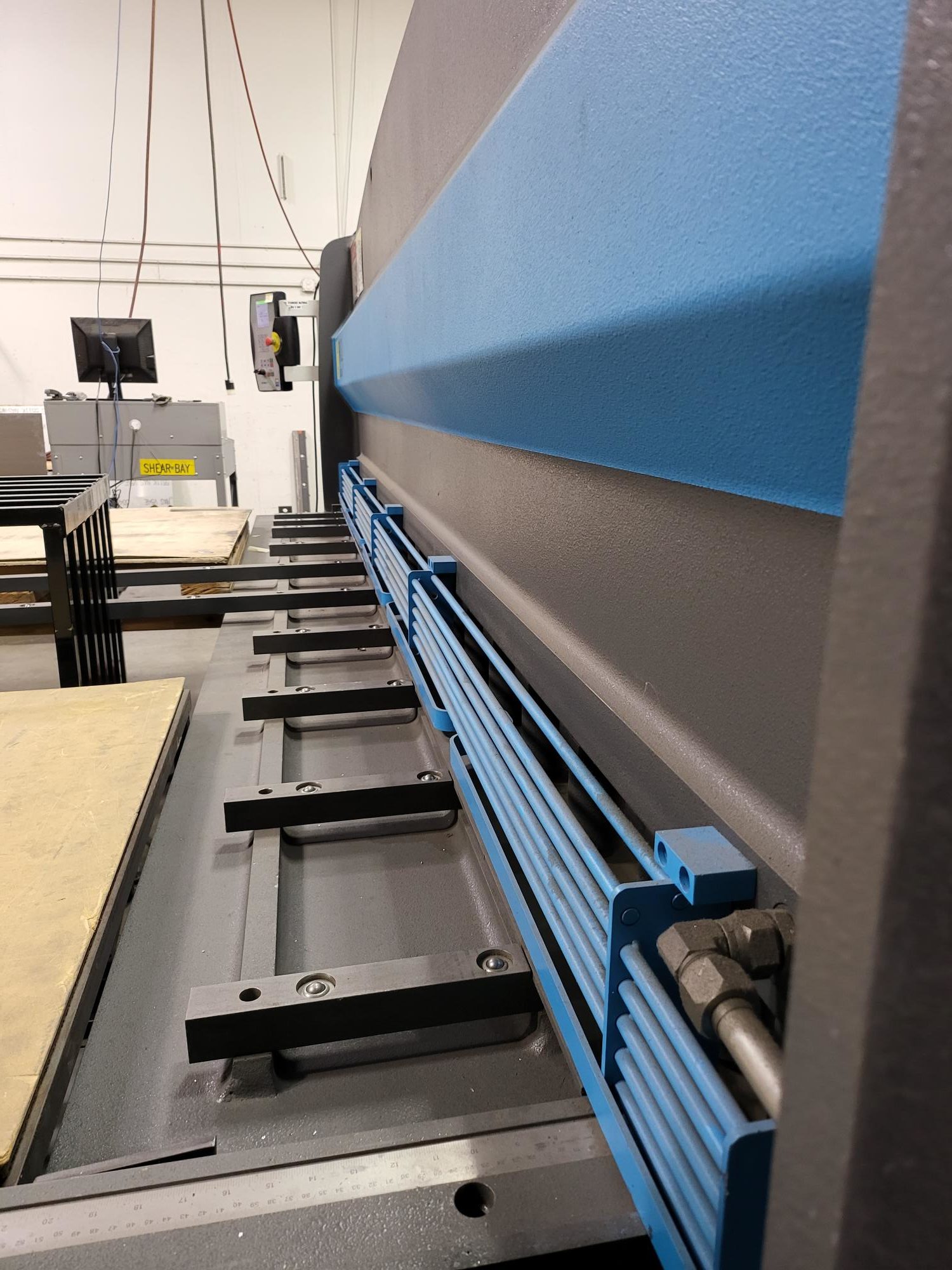

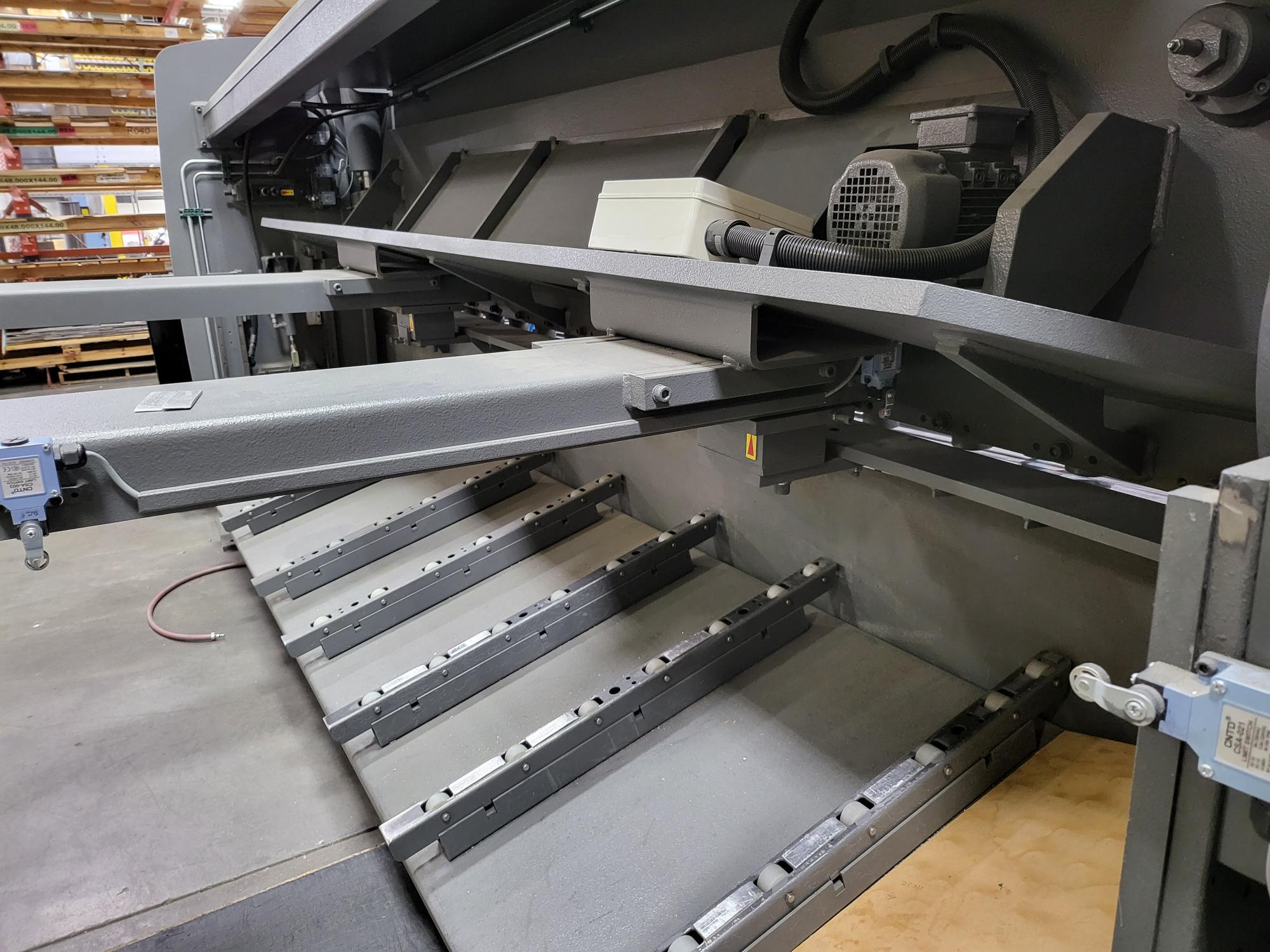

Hydraulic controlled hold-downs

The sheet hold-downs on the HSLX guillotine models are hydraulic controlled. The hold-downs use a separate hydraulic circuit with separate pump. A pressure activated switch is used for the right pressure setting. The hold-downs on both sides of the shear are installed closer together to cut small plates.

The HSLX guillotines come standard with a shadow light function, to be able cutting of plate, without the use of a backgauge.

SPECIFICATIONS

CAPACITY MILD STEEL:                                       1/4″

CUTTING LENGTH:                                                147″

CUTTING ANGLE ADJUSTMENT:                        0.5-3.0 DEGREES

NUMBER OF PLATE HOLD DOWNS:                  21

NUMBER OF STROKES PER MINUTE:                11

SQUARING ARM:                                                    40″

BACK GAGE:                                                            40″

MOTOR:                                                                     15 HP

MACHINE DIMENSIONS:                                      178″L X 77″W X 81″H

APPROX. WEIGHT:                                                 17600 LBS
