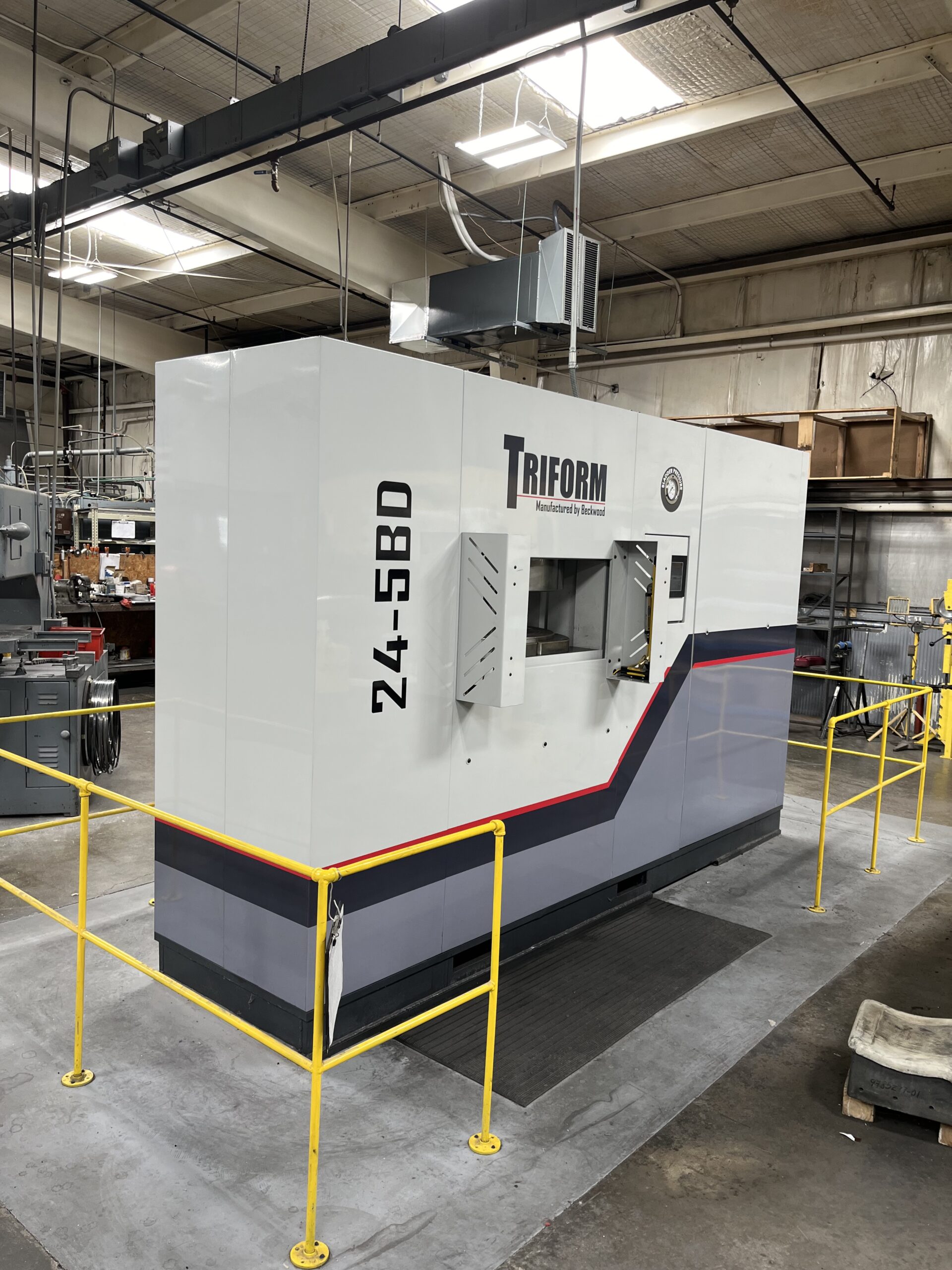

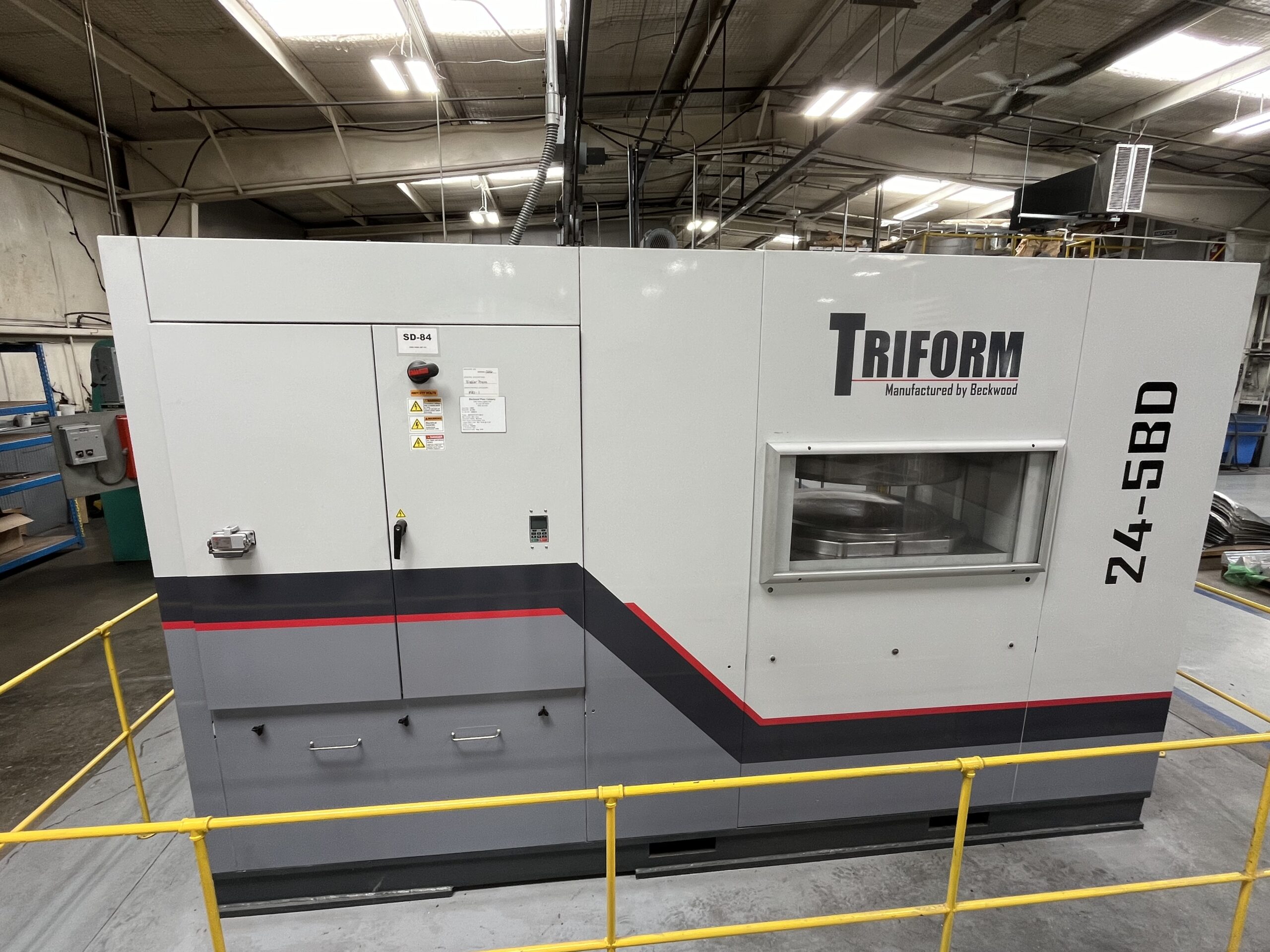

Model 24-5BD
Fluid Cell Sheet Hydroforming Press
OVERVIEW | MODEL: 24-5BD |
Press Type 1,203 Ton Sheet Hydroform
Forming Area 24”
Maximum Chamber Pressure 5,000 PSI
Cycle Time <20 seconds
Maximum Tool Height 5”
Daylight 7.25”
System Length 142”
System Width 35”
System Height 88”
System Weight 25,000 lbs
POWER SYSTEM FEATURES |
Total System Horsepower 20HP
Pump Manufacturer Rexroth or Parker
Reservoir Capacity 50 Gallons
On-Board Filling System Included
- An on-board pump is integrated into the press design to facilitate the filling of the reservoir with pre-filtered oil.
Working Fluid Customer Provided
- Triform presses require ISO 46 hydraulic fluid, pre-filtered to ISO 17/15/12 cleanliness standard.
- The installation team will have the ability to fill the reservoir directly from the barrel/container, into the Triform reservoir, using the On-Board Filling System.
Variable Frequency Drive (VFD) Included
- Improves equipment’s energy efficiency by varying the motor’s speed and torque, based on actual demand requirements.
- Significantly reduces noise levels.
- Reduces system’s operating temperature.
CONTROL SYSTEM |
Programmable Controller (PLC) Allen Bradley CompactLogix
Operator Interface 10” Color Touchscreen
ELECTRICAL |
Main Power 480V
Phase 3 Phase
Hz 60 Hz
Control System Voltage 24VDC
Alternative Power Solutions Available Upon Request
SAFETY FEATURES |
Front Guarding Light Curtains
Rear Guarding Polycarbonate Guard
