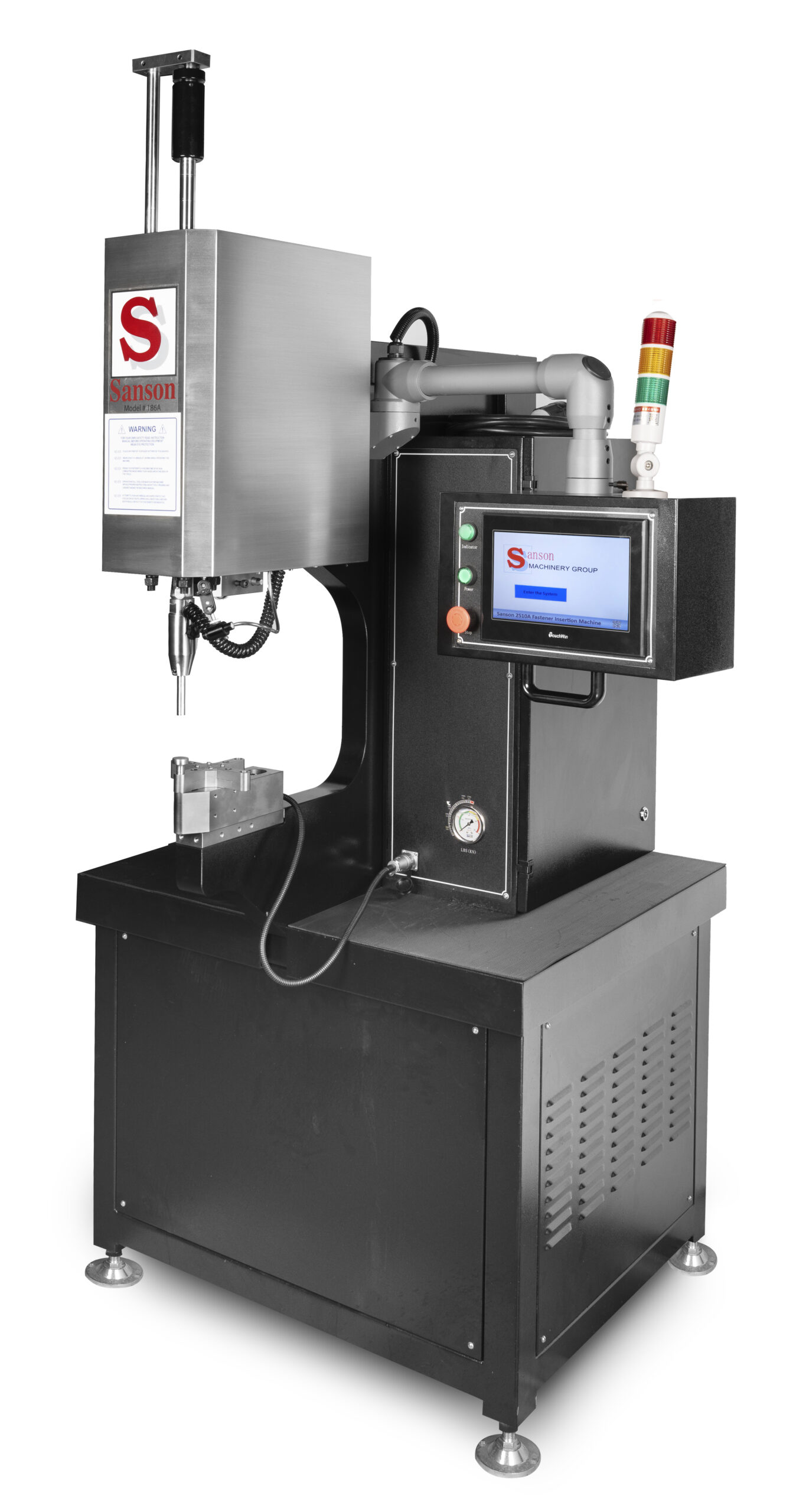

Sanson Insertion Press Model 186A
Specification:
Force Range 500 – 12,825 Lbs.
Throat Depth 17.71”
Throat Height 15.74”
Stroke Length 0-7.87” Adjustable
Electrical Current 220V, 3 Phase, 60Hz.
Power 4A
Motor HP 2HP
Repeatability ±1% of Force Setting
Safety Device Yes
Speed Up to 1200 insertion per hour
Fastener Range M10 Nut M8 Stud M6 S/0 Carbon Steel
Hydraulic Oil DTE26
Oil Tank Capacity 16 Gallons
Air Pressure 1-100 PSI
Dimensions 36” Wide X 43” Length X 78” Height
Weight 1,433 Lbs.
Brush Table Option
Elevate your Hardware Insertion Press with our Brush Table attachment—Designed to minimize friction and static, this addition ensures optimal efficiency, reducing the risk of damage and cosmetic imperfections caused by repositioning the part prior to inserting hardware.
Standard Features
- 18” Throat
- Ram Force Range 6 Ton
- Zoom Training
- Touch Screen With Automatic Pressure Setting
- 4SS Tool Holder
4SS Tool Holder
The 4SS Tool Holder, designed for the Sanson Insertion Hardware Press, is made from durable high-strength alloy steel. It accommodates various hardware types and sizes, providing precise alignment and secure holding. Its ergonomic design and quick-release mechanism ensure efficient, user-friendly operation with minimal training. Safety features protect operators, making it ideal for automotive, electronics, aerospace, furniture manufacturing, and metalworking applications.
TouchWin Control
Experience the future of interaction with TouchWin Control—an advanced touch interface technology that. is versatile, sleek, and accurate. It allows efficient set up for manual and automatic applications utilizing tool libraries.
Autofeed System
The Sanson offers a quick change auto feed system for standard nuts, studs and standoffs. Top feed and bottom feed tooling allow for maximizing productivity and minimizing downtime.
Options
- Metric Tooling Package
- Standard Tooling Package
- Brush Table
- Autofeed System
- Hardware Positioning Light
