Fiber Laser Cutting Machines
Our fiber laser cutting machines can help you reduce the cost of parts, maintenance, and downtime incurred with other types of cutting systems.
Because each customer’s cutting needs are unique, we offer machines from a couple of great manufacturers to meet your individual needs.

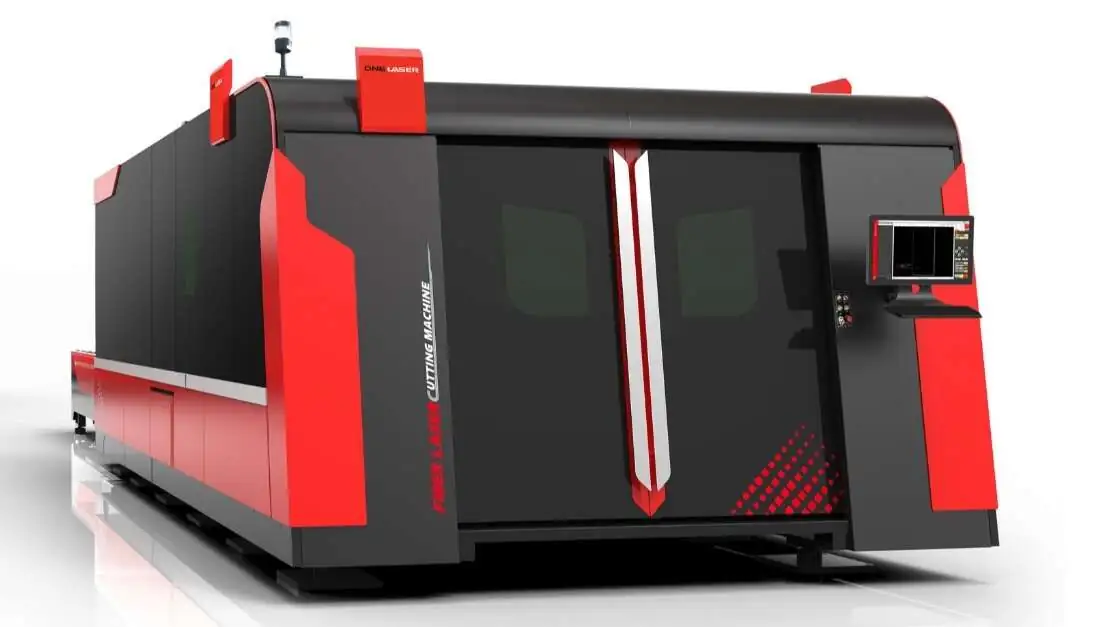

CY2D C2512
Fiber laser cutting system CY2D C2512 (4’x8’)
Features:
- Specifically designed to take advantage of the fiber laser technology;
- Construction philosophy with the use of Off-The-Shelf components to avoid forced customer retention;
- EVO III proprietary cutting head, designed and built by CYLASER; the most advanced in fiber laser industry, being the result of 15-year experience in this specific process;
- Compatible with the main CAD-CAM software available in the market;
- Suitable for prototyping;
- Optimized height of internal working table;
- Access door to the cutting area with easy opening;
- Compact footprint, only 345 sq.ft;
- Fast installation and user friendly;
CY2D EL3015
Fiber laser cutting system CY2D EL3015 (5’x10’)
Features:
- Construction philosophy with the use of Off-The-Shelf components to avoid forced customer retention;
- EVO III proprietary cutting head, designed and built by CYLASER, the most advanced in fiber laser industry, being the result of 15-year experience in this specific process;
- Compatible with the main CAD-CAM software available on the market;
- New and extremely modern design;
- Optimized Gantry system;
- Brushless motors and rack and pinion to reduce operating costs;
- Load-Unload automation set-up available.
CY2D HL4030
Fiber laser cutting system CY2D HL4030 (10’x13’)
Features:
- Specifically designedto take advantage of the fiber laser technology;
- Compatible with the main CAD-CAM softwareavailable in the market;
- Construction philosophy with the use of Off-The-Shelf componentsto avoid forced customer retention;
- Absolute precision and mechanical stability thanks to the “Airplane” structure;
- No repositioning needs, maximum precisionin large plates;
- Horizontal material storage, with the possibility of processing multiple plates on a single pallet;
- EVO III proprietary cutting head, designed and built by CYLASER; the most advanced in fiber laser industry, being the result of 15 year experience in this specific process.
LaserCube
The LaserCube is designed for precision cutting of metal parts. System options include a vision alignment module for cutting pre-processed or punched sheets, an automated sheet loader, as well as a rotary stage option for tube and profile cutting.
- Work Area: 1225 × 1225 mm
- Laser Power: Up to 6000 W
- Footprint: 2185 × 2604 mm
- >40% laser wall-plug efficiency lowers operational costs
The Right Solution For Your Shop Floor
- Widest choice of laser power to match the application
- Granite base for thermal and mechanical stability essential for high-precision cutting
- Linear motor drives provide high acceleration and minimize maintenance
- Vision registration option for punched or printed parts
- Zero-maintenance lasers and high-reliability design ensure high tool availability
- Small footprint minimizes space requirements and makes installation easy
- Library of standard recipes to begin cutting immediately
LaserCube Software
The software that runs the LaserCube is a customized application called HMI2 (Human Machine Interface-2) that runs as a Microsoft Windows® 10 application. It is preloaded and tested at the IPG factory and resides in the workstation’s hard drive.
Used in combination with standard G-code programming, its capabilities provide the user with a comprehensive, easy-to-use programming and operator interface.
Easy-to-Use Programming and Operator Interface
- Fully integrated control of laser, motion systems, beam, delivery, process control modules and vision functions
- Live G/M code display with production controls for interrupt and resume
- Graphical display showing cuts to be made
- Stored, editable, library of cutting parameter tables for a wide variety of materials
- Automated machine-vision based alignment and nested job setup
- On-machine part nesting for arrayed parts
- Powerful, simple to operate, vision alignment software for combo part processing
Sanson Sales Team
With the advancements in laser technology, you will notice a significant increase in the end product of each project you create with your laser cutting system.
The sales team at Sanson Machinery Group are eager to discuss laser technology and help you discover your laser cutting system options.
Call us at 800-822-8152 or sales@sansonmachinery.com to set up a time to discuss fiber laser cutting machines.
