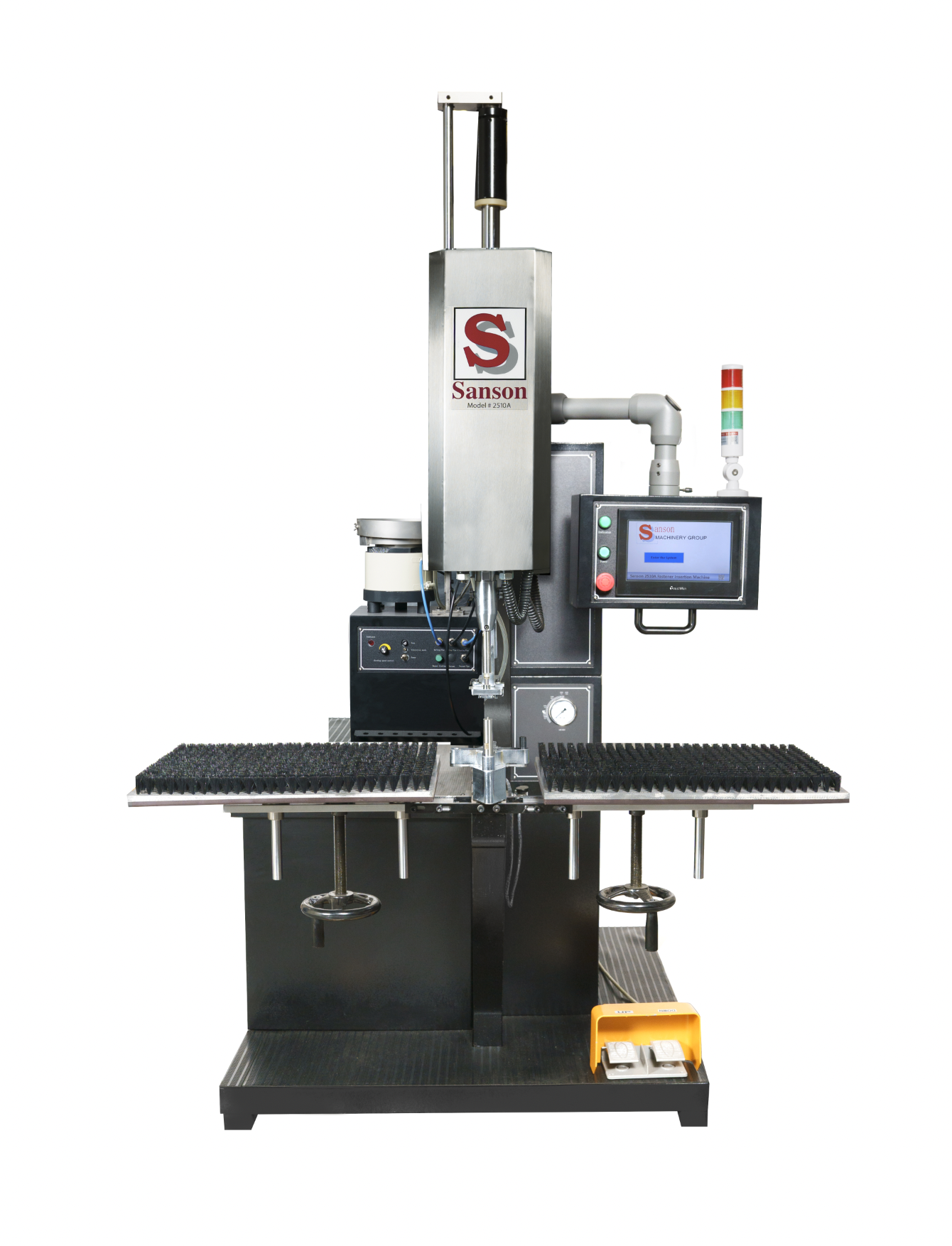

Sanson Insertion Press Model 2510A
Specifications:
Force Range 450-20,000 Lbs.
Throat Depth 25.59”
Throat Height 19.59”
Stroke Length 0-7.87” Adjustable
Electrical Current 220V, 3 Phase, 60Hz.
Power 6A
Motor HP 4HP
Repeatability ±1% of Force Setting
Safety Device Yes
Speed Up to 1200 insertion per hour
Fastener Range Carbon Steel, w/ Max Size Nut M12 S/O MIO Stud M8
Hydraulic Oil DTE26
Oil Tank Capacity 21 Gallons
Air Pressure 1-100 PSI
Dimensions 62” Wide X 42” Length X 84” Height
Weight 3,064 Lbs.
Brush Table
Elevate your Hardware Insertion Press with our Brush Table attachment—Designed to minimize friction and static, this addition ensures optimal efficiency, reducing the risk of damage and cosmetic imperfections caused by repositioning the part prior to inserting hardware.
4SS Tool Holder
The 4SS Tool Holder, designed for the Sanson Insertion Hardware Press, is made from durable high-strength alloy steel. It accommodates various hardware types and sizes, providing precise alignment and secure holding. Its ergonomic design and quick-release mechanism ensure efficient, user-friendly operation with minimal training. Safety features protect operators, making it ideal for automotive, electronics, aerospace, furniture manufacturing, and metalworking applications.
Standard Features
- Touch Screen With Automatic Pressure Setting
- 25” Throat
- Ram Force Range 10 Ton
- Zoom Training
- 4SS Tool Holder
- Manual Tool Package
- Brush Table
TouchWin Control
Experience the future of interaction with TouchWin Control—an advanced touch interface technology that. is versatile, sleek, and accurate. It allows efficient set up for manual and automatic applications utilizing tool libraries.
Autofeed System
The Sanson offers a quick change auto feed system for standard nuts, studs and standoffs. Top feed and bottom feed tooling allow for maximizing productivity and minimizing downtime.
Options
- Metric Tooling Package
- Standard Tooling Package
