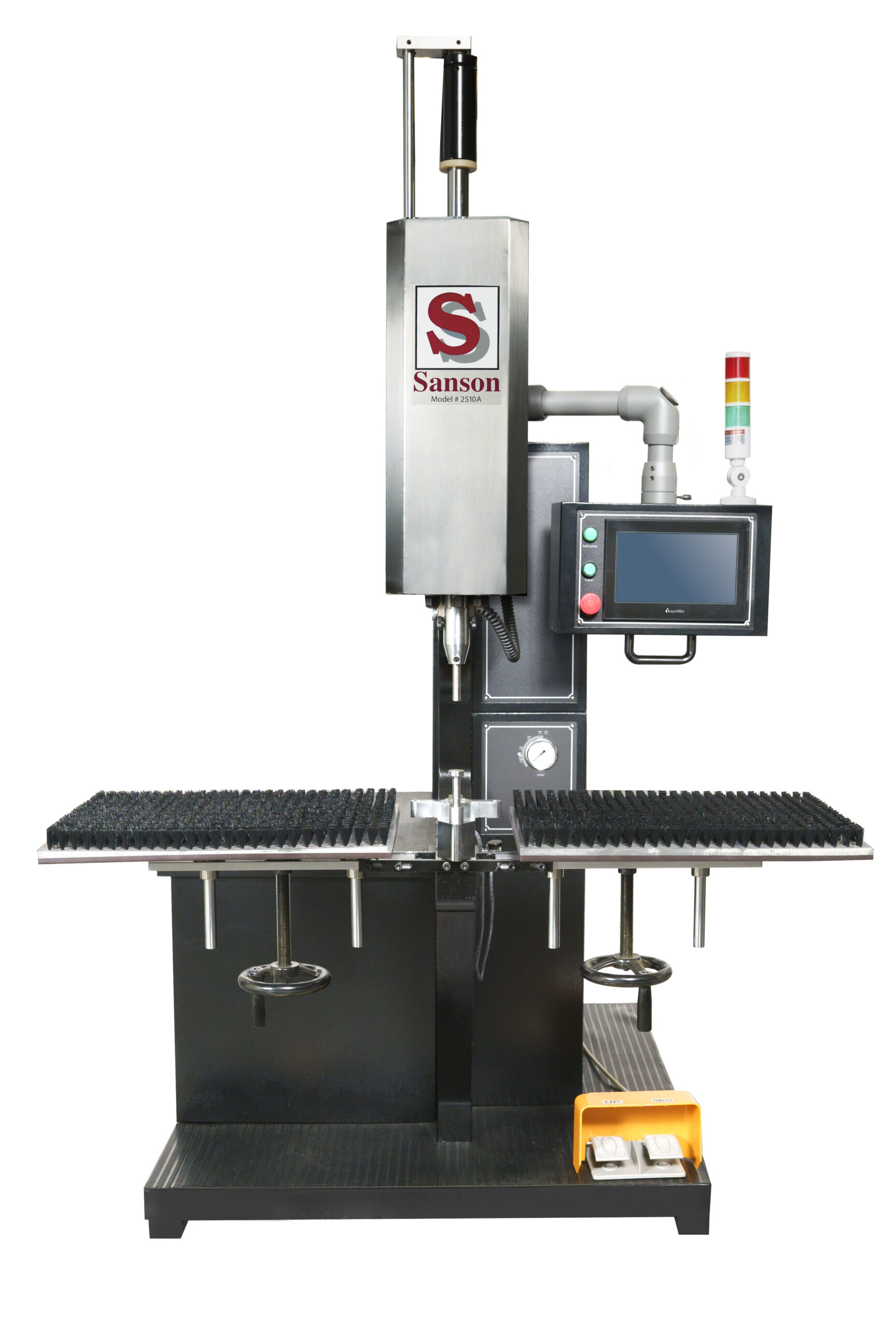

Sanson Insertion Press Model 2510M





Specification:

Force Range                                     1760 -20,000 Lbs.

Throat Depth                                     25.59”

Throat Height                                    17.71”

Stroke Length                                   0-7.87” Adjustable

Electrical Current                            220V / 440V, 3 Phase, 60Hz.

Power                                                 16A / 8A

Motor HP                                            4HP

Repeatability                                     ±2% of Force Setting

Safety Device                                    Yes

Speed                                                 Up to 1200 insertions per hour.

Fastener Range                                CS / Unified / Metric

Maximum                                           Nut 0820 / Nut M12

Stud 0518 / Stud M8

Standoff 1032 / Stasndoff M5

Hydraulic Oil                                     DTE26

Oil Tank Capacity                             16 Gallons

Air Pressure                                     1-100 PSI

Dimensions                                       62” Wide X 42” Length X 84” Height

Weight                                                2,430 Lbs.

Shipping Weight                               2,870 Lbs. (Crated)





Brush Table

Elevate your Hardware Insertion Press with our Brush Table attachment—Designed to minimize friction and static, this addition ensures optimal efficiency, reducing the risk of damage and cosmetic imperfections caused by repositioning the part prior to inserting hardware.





4SS Tool Holder

The 4SS Tool Holder, designed for the Sanson Insertion Hardware Press, is made from durable high-strength alloy steel. It accommodates various hardware types and sizes, providing precise alignment and secure holding. Its ergonomic design and quick-release mechanism ensure efficient, user-friendly operation with minimal training. Safety features protect operators, making it ideal for automotive, electronics, aerospace, furniture manufacturing, and metalworking applications.





Standard Features

• Touch Screen With Automatic Pressure Setting
• 25” Throat
• Ram Force Range 10 Ton
• Zoom Training
• 4SS Tool Holder



TouchWin Control

Experience the future of interaction with TouchWin Control—an advanced touch interface technology that. is versatile, sleek, and accurate. It allows efficient set up for manual and automatic applications utilizing tool libraries.

Options

• Metric Tooling Package
• Standard Tooling Package
• Motorized Brush Table
• Mechanical Brush Table
• 4ss Tool Holder
