Profile Bending Machines
With five profile bending machine sizes, PBT offers a full range of capacities, power and flexibility. PBT machines offer best-in-class CNC software, the ability to integrate and automate bending processes, high quality craftsmanship, and full-service support. PBT is used in many metalworking industry applications: automotive, aerospace, architecture, curved lighting, window and façade engineering, construction equipment, conveyor technology, roof systems and more.

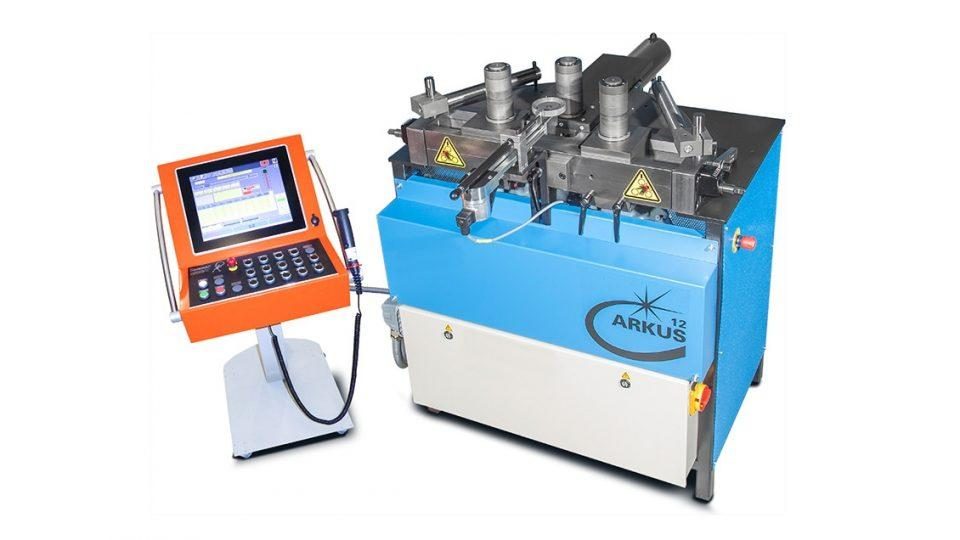

ARKUS-12
The Arkus12® by PBT is a compact, high-performance profile bending machine distinguished by its flexibility and quality. It is designed to bend smaller steel and aluminum profiles and can be equipped to bend extremely small radii. The Arkus12 compact bender delivers outstanding Swiss quality paired with modern, ergonomic design and a range of powerful CNC control systems. It features individually driven front rollers that are highly adjustable and easy to move. The Arkus12 is used with filigree aluminum and steel profiles in the automobile, metalworking, construction and manufacturing industries.
The machine itself is movable with a pallet jack. Consultation, training and commissioning are included with purchase.
Profile Bender Arkus 12 Technical Data
| Flat Bar | ¾” x 2″ to 7″ Dia. |
| Power X Axis | 14 tons |
| All three rollers driven individually: Manual PC50 Teach-in PC300 Continuous | 18 rpm 18 rpm 1-32 rpm |
| Maximum Torque per roller | 369 ft. lbs. (500Nm) |
| Front Roller Adjustable | 10″ x 20.39″ (256 – 518mm) |
| Tool Holding Fixture ∅ | 1.57″ (40mm) |
| Lift Height/Stroke | 7.87″ (200mm) |
| Hydraulic Drive | 1 HP (0.75 kW) |
| Roller Driver | 0.5 HP (3x 0.37 kW) |
| Power Supply | 208/230/460 |
| Accuracy X Axis – Manual PC50 / PC300 | 0.03937″ (1/10mm) 0.003937″ (1/100mm) |
| Length | 32.28″ 820mm |
| Width | 37.4″ (950mm) |
| Height | 44.25″ (1’125mm) |
| Weight Manual | 825 lbs. (375 kgs) |
| Weight PC300 | 970 lbs. (440 kgs) |
Request a Quote Today
BENDO
Bending for High Production Jobs
With the Bendo profile bending machines, PBT has created something truly compelling. Sturdy construction and modern, ergonomic design make the Bendo highly compatible with today’s manufacturing environment. The Bendo bender can be paired with one of PBT’s powerful CNC controls for extreme accuracy, simplicity and speed. The profile bending machine’s configuration allows operators to work from both sides. It features a roller height of 300mm (11.81”) with an infinitely adjustable front roller distance and an option for extra-tall shafts. Bendo machines can be equipped with optional shaft adapters that change the tool shaft diameter from 65mm to 105mm. This allows a greater range of existing tooling to be used with the machine. The PBT Bendo is used for applications in automotive, aerospace, materials handling, metalworking, construction and structural steel engineering industries.
Consultation, training and commissioning are included with purchase.
Technical Data of the Bendo bending machine
| Flat Bar | ½” x 6″ to 12″ Dia. |
| Power | 22 t |
| All three rollers driven individually: PC50: | 8/12/24 rpm |
| All three rollers driven individually: PC250/300: continuous | 1 – 30 rpm |
| Maximum Torque per roller | 1600 Nm |
| Front Roller Adjustable | 7.8″ – 40″ |
| Tool Holding Fixture ∅ | 65mm / 105mm |
| Lift Height | 10.24″ |
| Hydraulic Drive | 4 HP |
| Roller Driver | 3x 1.5 HP |
| Power Supply | 230/460V/16A |
| Accuracy X Axis – PC50/PC300 | 0.0004″ |
| Length | 5′ |
| Width | 5′ |
| Height | 4’6″ |
| Weight | 2,535 lbs. |
