The Geka Bendicrop Series of hydraulic machines consists of three models: the Bendicrop 50, a single-cylinder ironworker machine, and the Bendicrop 60 and 85, both of which are two-cylinder machines that have the capability of being operated by two users at the same time.The Bendicrop Series of machines come fitted with six workstations for different metalworking tasks: punching, notching, shearing flat bars, angle cutting, shearing round and square bars, and an integrated bending station. The permanent integrated bending station makes of these machines unique solutions in the ironworking market.The machines are also fitted with Geka’s own anti-torsion system that reduces deformation when shearing flat bars.
Bendicrop 85 Hydraulic Ironworker
The Geka Bendicrop 85 is the Bendicrop Series model that offers the most punching power (93 US tons). Metal fabricators and construction companies will find the machine useful in performing simple bending operations.

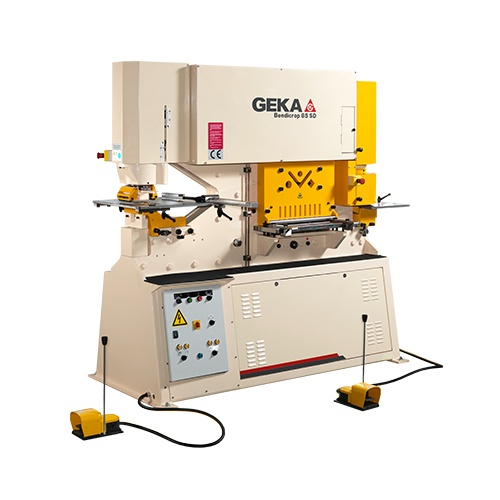

Bendicrop 85 Hydraulic Ironworker Machine with an Integrated Bending Station and an Anti-Twist system
It includes two hydraulic cylinders, allowing it to be used by two operators at once, and a built-in bending station with a capacity of up to 8″ x ½”, making it unique in the market. Other stations include shearing, punching, and notching stations.
The Bendicrop 85 comes in two versions with different throat depths: an S version with a standard throat 12″ deep and an SD version with an extended throat depth of 20″.
- Punching station with different throat depths and 93 US tons of Punching Power.
- Flat Bars Shearing.
- Bending Station.
- Triangular Notching Station.
- Angles, Round, and Square Bars Shearing Station.
The machine includes six workstations that perform different ironworking tasks:
- Punching station
- Flat bar shearing station
- Built-in bending station
- Triangular notching station
- Angle cutting station
- Round and square bar shearing station
Fitted with an Anti-Torsion System to reduce deformation when shearing flat bars.
Bendicrop 85 model is fitted with a touch and cut length stop and is delivered with two V-shaped Bending Dies of 2” and 3.5”.
2 Punching Throat versions available:
S Version: 12” Standard Throat.
SD Version: 20” Extended Throat.
BENDICROP 85 FEATURES AND SPECIFICATIONS
| FEATURES | BENDICROP 85 Series |
|---|---|
| Punching Power | 93 US Tons |
| Punching | Ø1-9/16” x ½” |
| Flat Bar Shearing | 18” x 5/8” @ 2.5º 18” x 7/8” @ 5º |
| Shear of Angles at 90º | 4” x 4” x 1/2” |
| Bending | 8” x ½” with 2 “V” dies of 2” and 3-1/2” Openings |
| Triangular Notching | 5” x 5” x ½” |
| Round and Square Bar | Ø1-3/4” Round, 1-9/16” Square |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Bendicrop main features:
 |
 |
 |
 |
 |
|
| Max Punching Ø | Flat Bars Shearing | Angle cut 90º | Notching | Bending | |
| Bendicrop 50 | 1 1/4 x 1/2” 1 1/16 x 1/2” |
14” x 9/16” (5º) 14” x 1/2” |
3” x 3” x 5/16” | Rectangular 4″ x 3/8” |
4” x 3/8” |
| Bendicrop 60 | 1 1/2” x 7⁄16” | 14” x 9/16” (5º) 14” x 1/2” |
4” x 4” x 1/2” | Triangular 4″ x 3/8” |
6” x 3/8” |
| Bendicrop 85 | 1 1/2” x 1/2” | 18” x 5/8” (5º) 18” x 3/4” |
4” x 4” x 1/2” | Triangular 5″ x 1/2” |
8” x 1/2” |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
