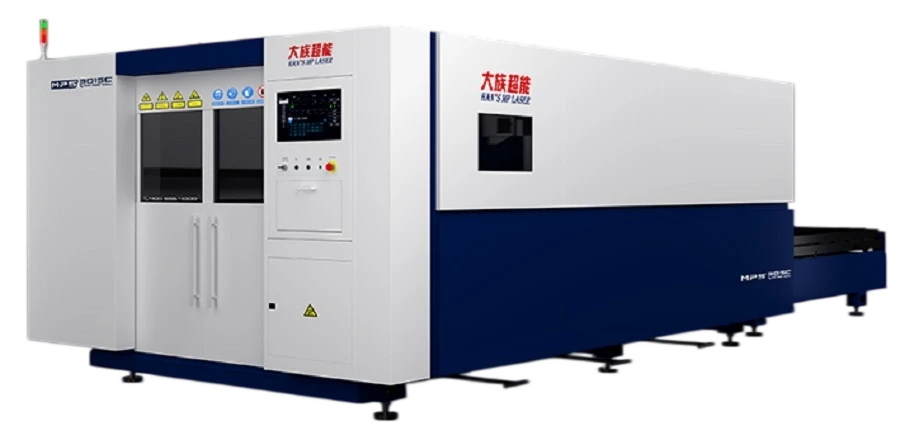

MPS-C Fiber Laser Cutting Machine
Machine Features
1.Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability;
2.Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.
3.Low running cost: Low accessing gas consumption by precision control, to ensure the low running cost, three kinds of auxiliary gas for selection.
Applications
It is suitable for sheet metal processing, kitchen appliances, sheet metal case cabinets, lighting advertising, electrical equipment and all kinds of metal material processing applications.
Technical Data Sheet
| Processing area | 3000mm×1500mm |
| X/Y axis location accuracy | ±0.05mm/m |
| X/Y axis repeat location accuracy | ±0.03mm |
| Max running speed | 120m/min |
| Max running acceleration | 1.2G |
| Max load of worktable | 700kg |
| Power supply | 380V/50HZ |
| Machine tool weight | About 5.5T |
| Dimension(L*W*H) | 8.8m×2.25m×2.2m |
