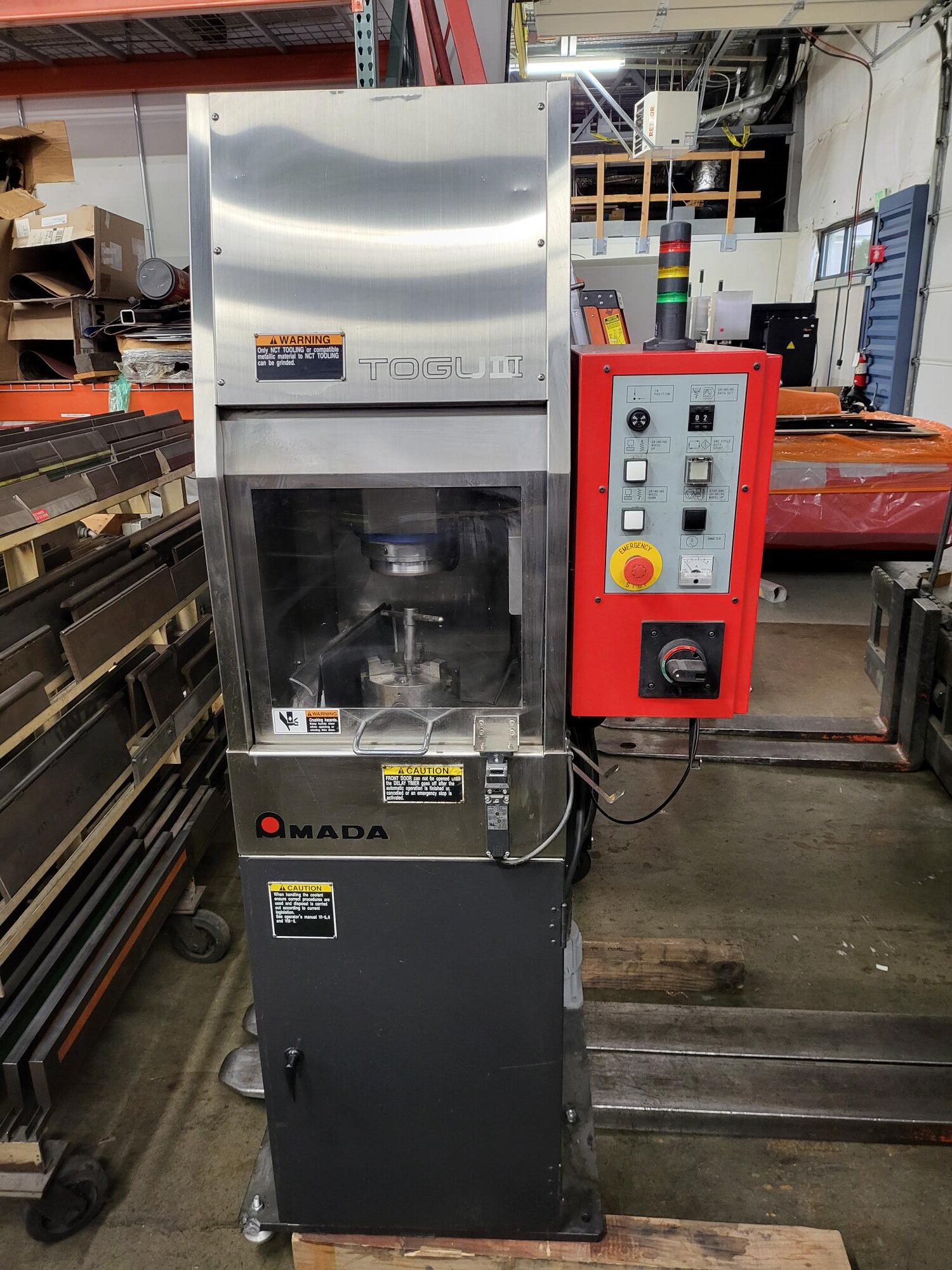

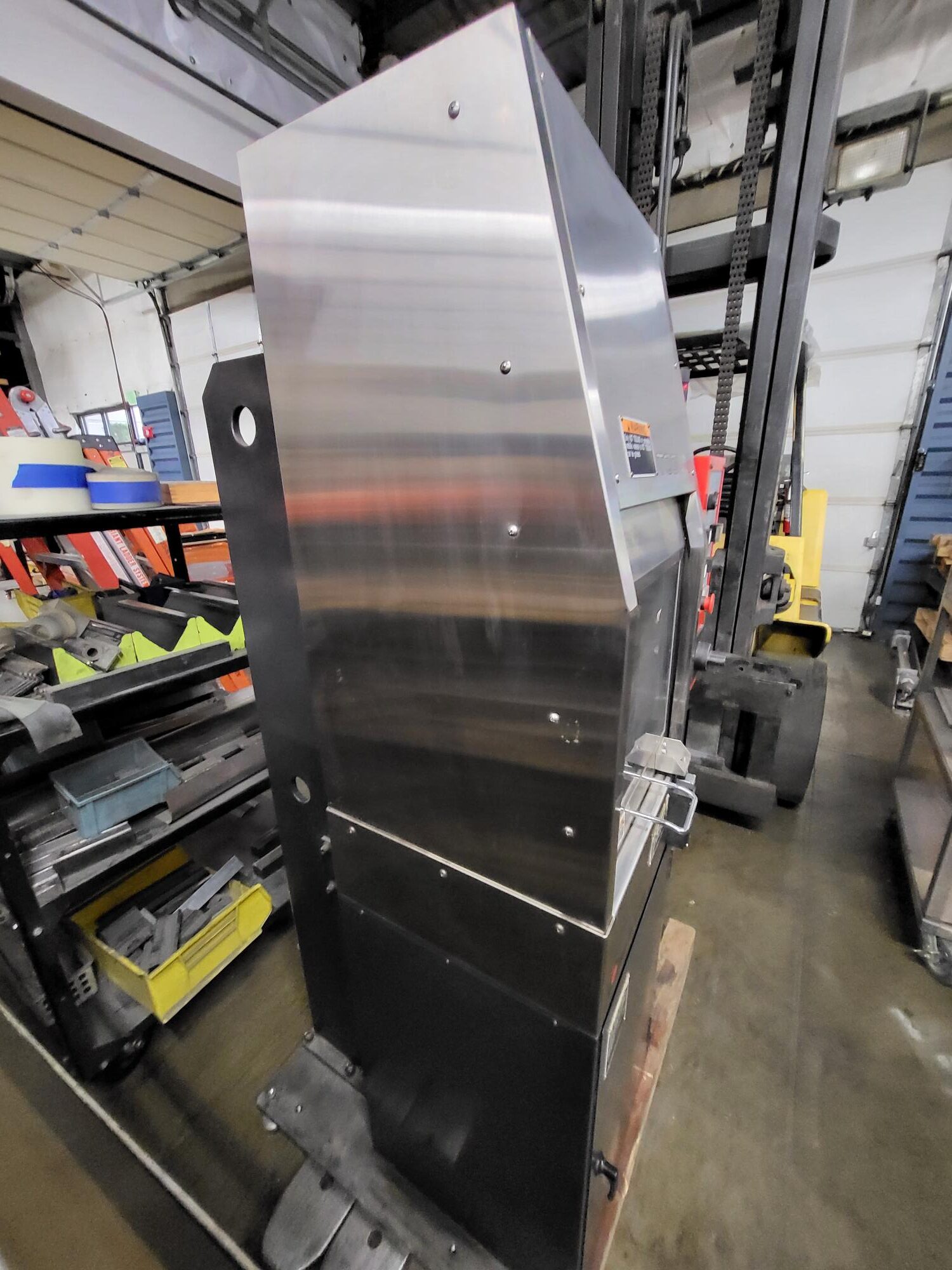

2018 Amada TOGU III Tool Grinder

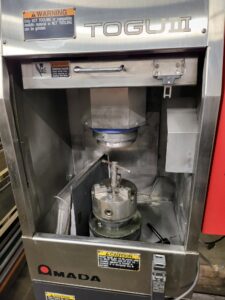

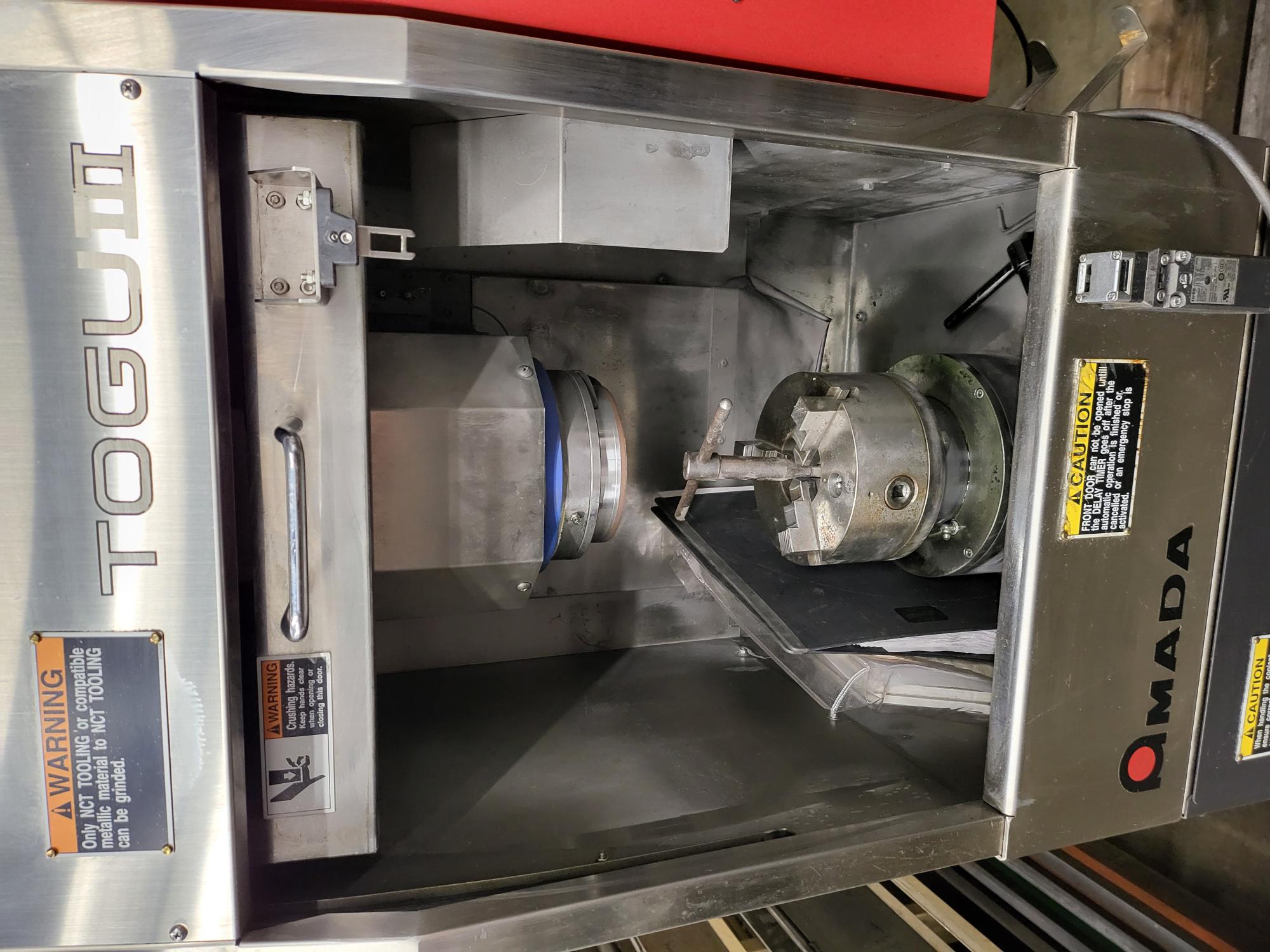

Grinding is no longer the same old grind with the Togu III. Simply chuck a tool, choose your grind amount and hit the start button. The day of high-precision, automated grinding has arrived.

• High-precision automated grinding designed specifically for turret punch press tooling.
• Servo-controlled wet rotary grinding provides unsurpassed surface finish significantly increasing tool life.

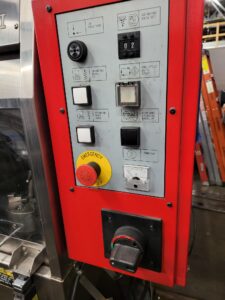

• Easy operation-experienced grinding operators unnecessary.
• Small footprint allows strategic shop placement.
• Comes in various sizes of jigs and sleeves.

Specifications:

Grinding Wheel:                                 CBN ⌀ 5.31
Max. Diameter Tool Size:                  ⌀ 6.30
Max. Grinding:                                   0.039″
Main Axis Motor:                               2 HP 2 P
Main Axis Rotation Speed:                3000 RPM (60Hz)
Main Axis Travel:                               9.45″
Main Axis Feed Motor:                      DC Servo 0.05 HP
Main Axis Feed Speed-High:                         23.6 IPM
Main Axis Feed Speed-Middle:          2.36 IPM
Main Axis Feed Speed-Low:              0.002 IPM
Table Motor:                                       0.134 HP 4P
Table Rotation Speed:                        72 RPM(60Hz)

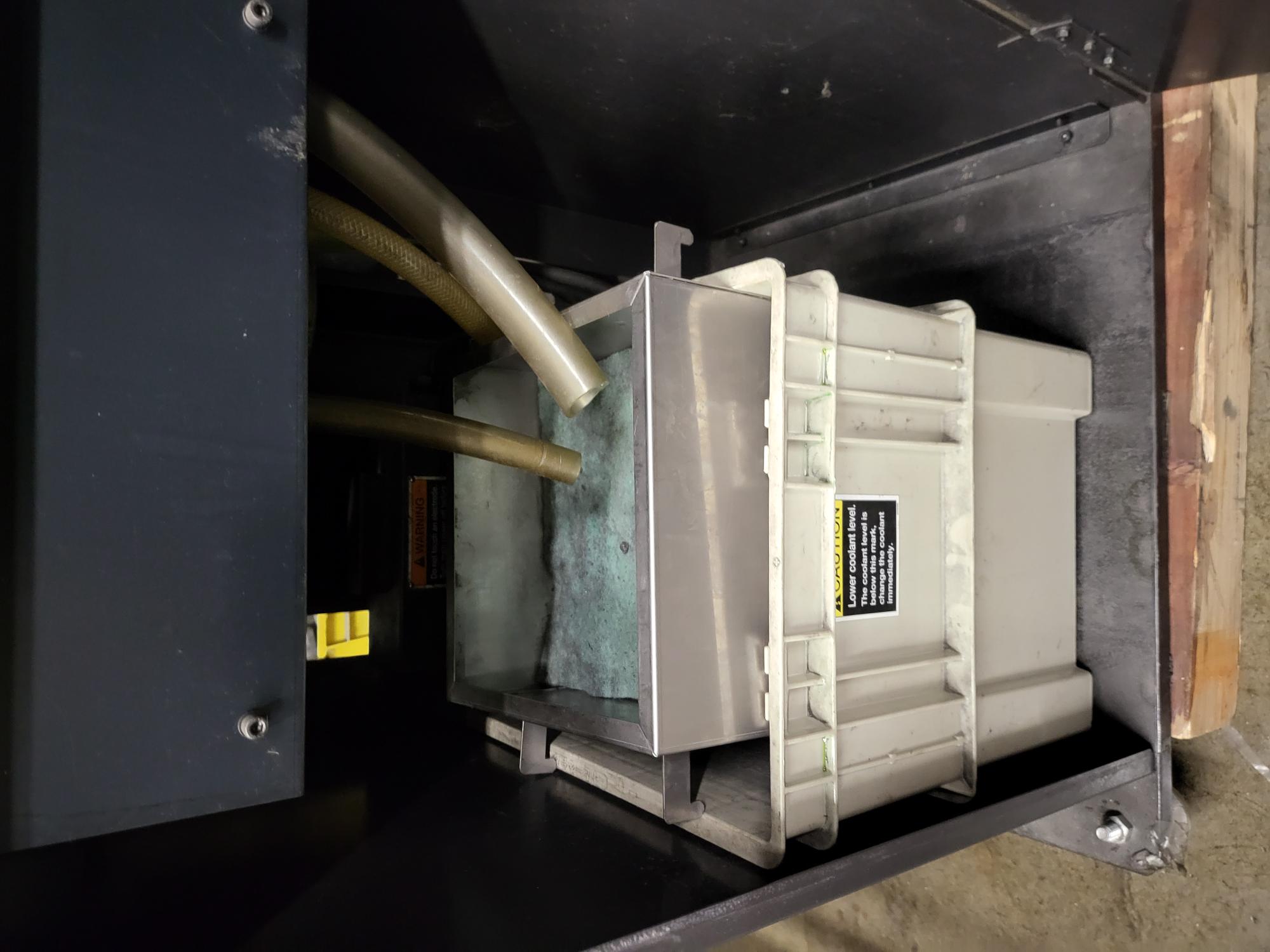

Cooling Water Pump Motor:              0.08 HP 2P
Cooling Water pump Motor Flow:     0.9 CFM (60HZ)
Power Supply: AC 220 V 3Phase       2.5kVA
Air Supply:                                         60 CFM

Dimensions LxWxH (approx.):          32.7″ x 25.6″ x 73.3″
Machine Weight:                                1058 LB
