Sanson Machinery Group
Specifications:
Distance Between Housings 12’-6”
Overall Die Surface 14’
Length 12’
Tonnage (Low-Med Speed) 350
Tonnage (High Speed) 140
Standard Stroke Length 10”
Ram Speed High 65 IPM
Medium 33 IPM
Low 9 IPM
Speed Return 67 IPM
Motor 35 HP
Shipping Weight 44,000 Lbs
Additional Information

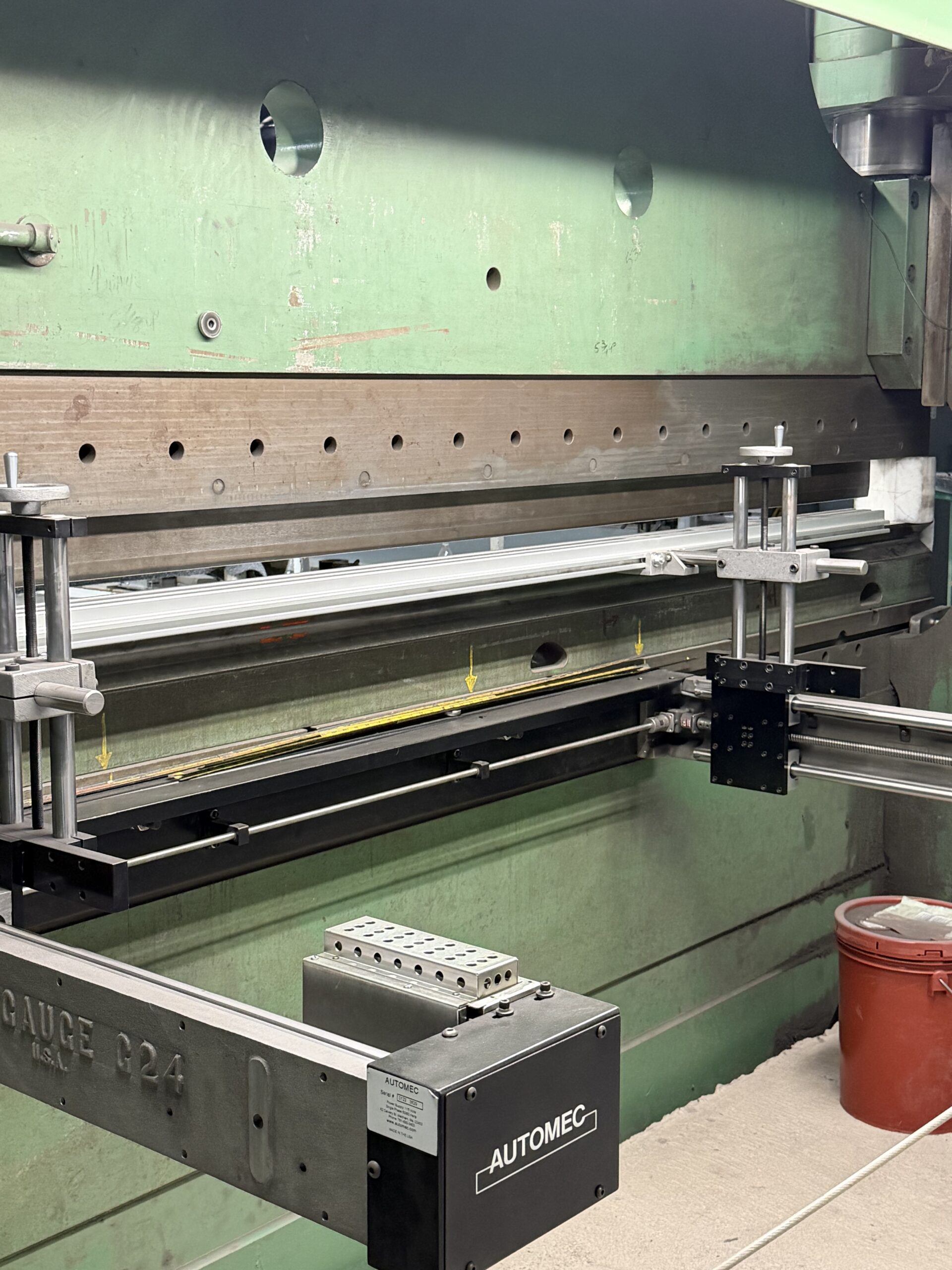

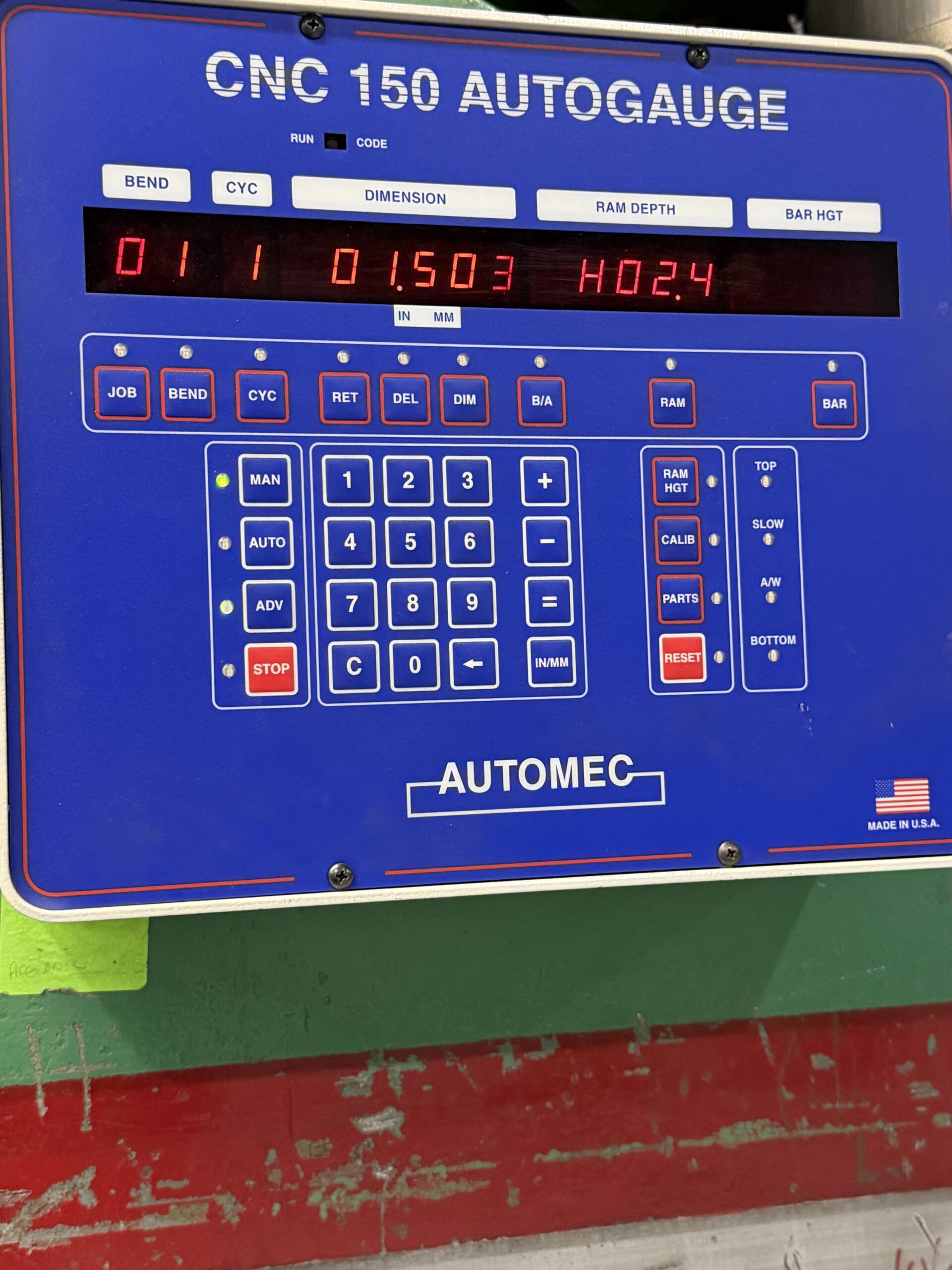

Control: Automec 150HD 2 Axis
Pit: Required
