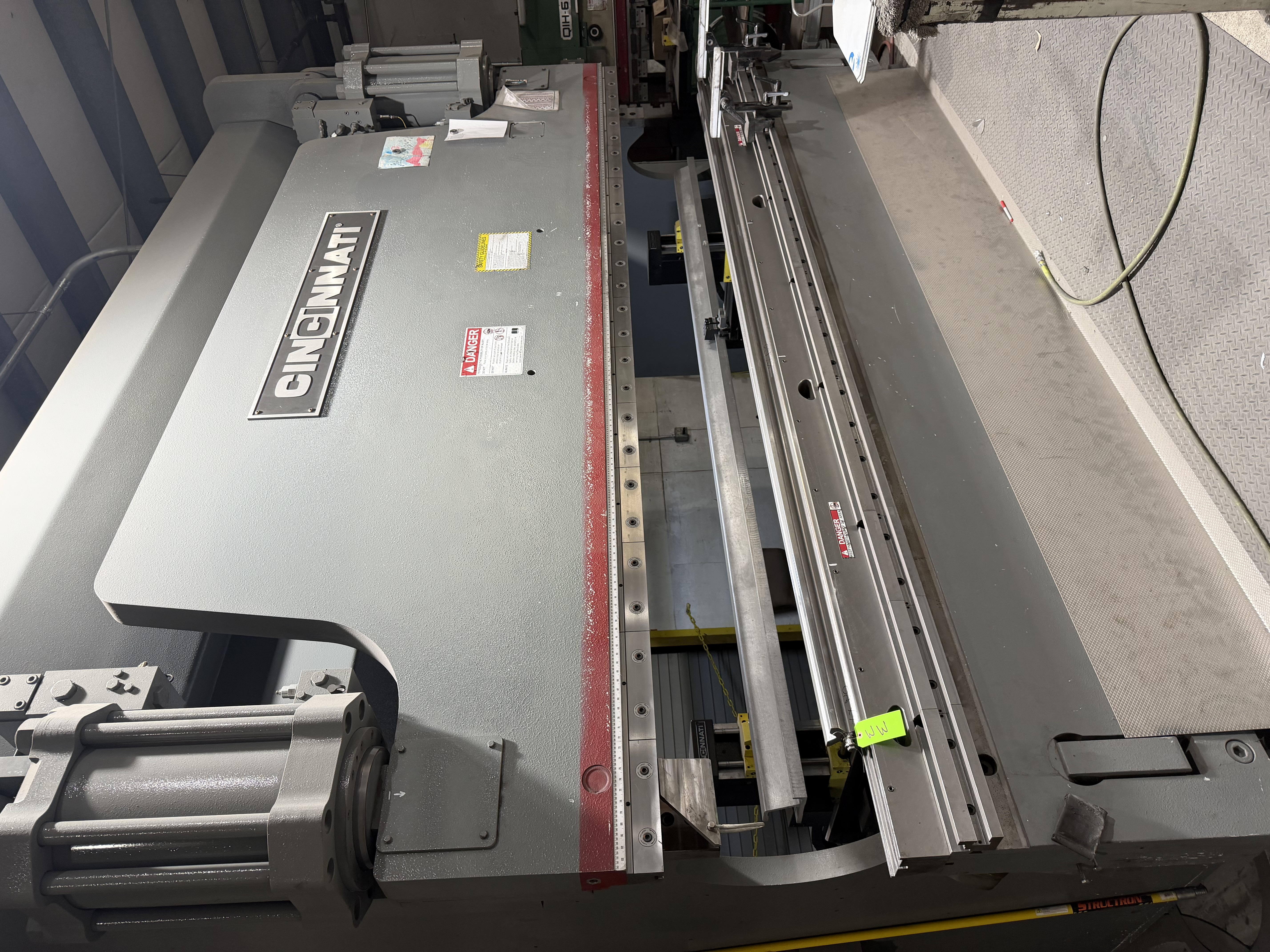

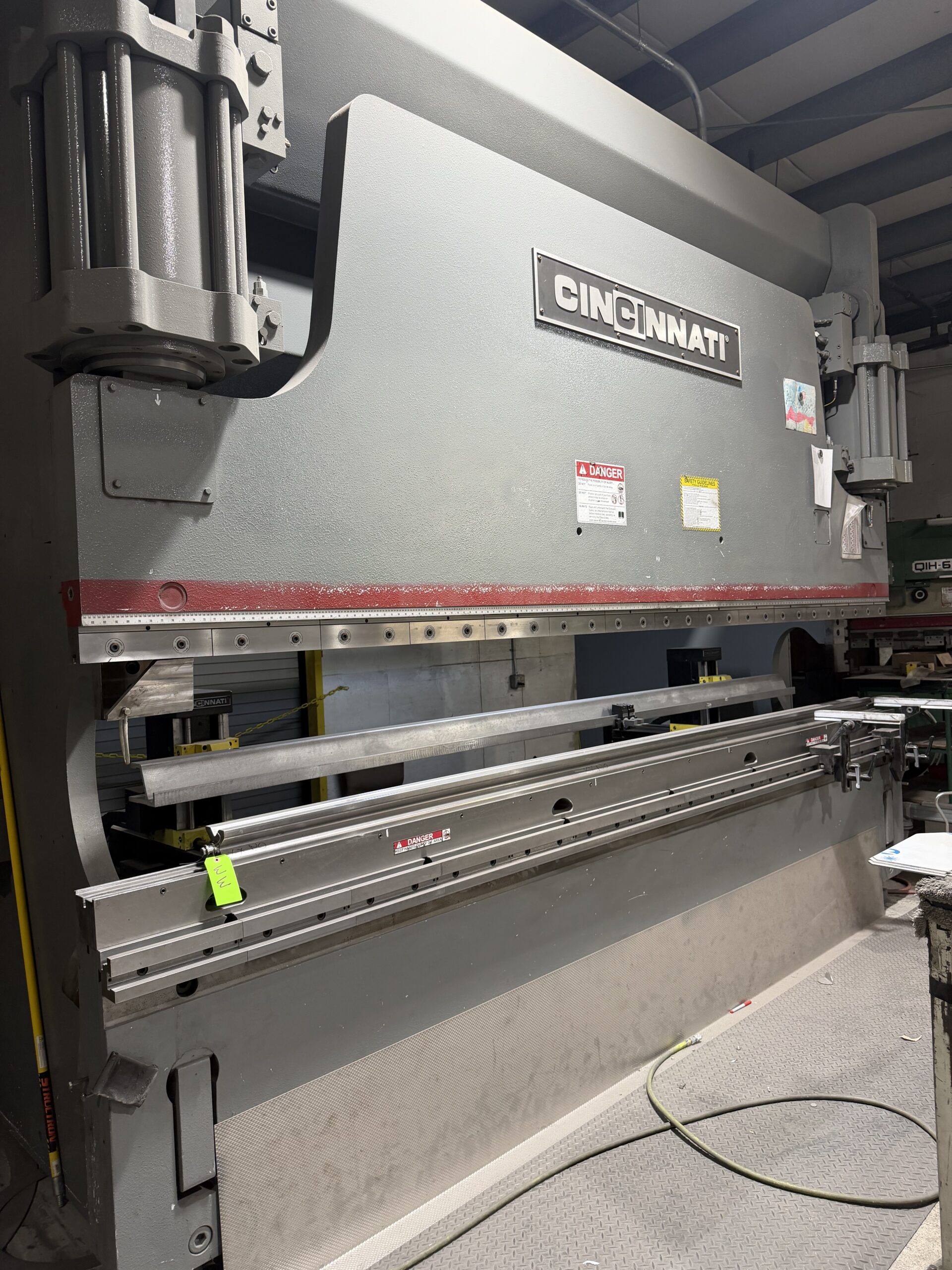

Cincinnati ProForm Press Brake
Model: 350PF12
Specifications:
Distance Between Housings 12’-6”
Total Overall Die Space 14’
Tonnage Capacity 350
Thickness X Length ¾” Plate X 8’-6”
Over V Die Opening 8”
Throat of Machine 18”
Stroke Length 16”
Bed To Ram Height Closed 8”
Open 24”
Approximate Ram Speed High Approach 105 IPM
Variable Forming 1 to 20 IPM
Variable Return 1 to 95 IPM
Distance From Floor to Bed Top 36”
Width at Bed Top 5-1/2”
Motor 15 HP
Weight 44,000 Lbs
Additional Information
Pit Required
2 Axis Back Gauge
4-Way Die Holder
