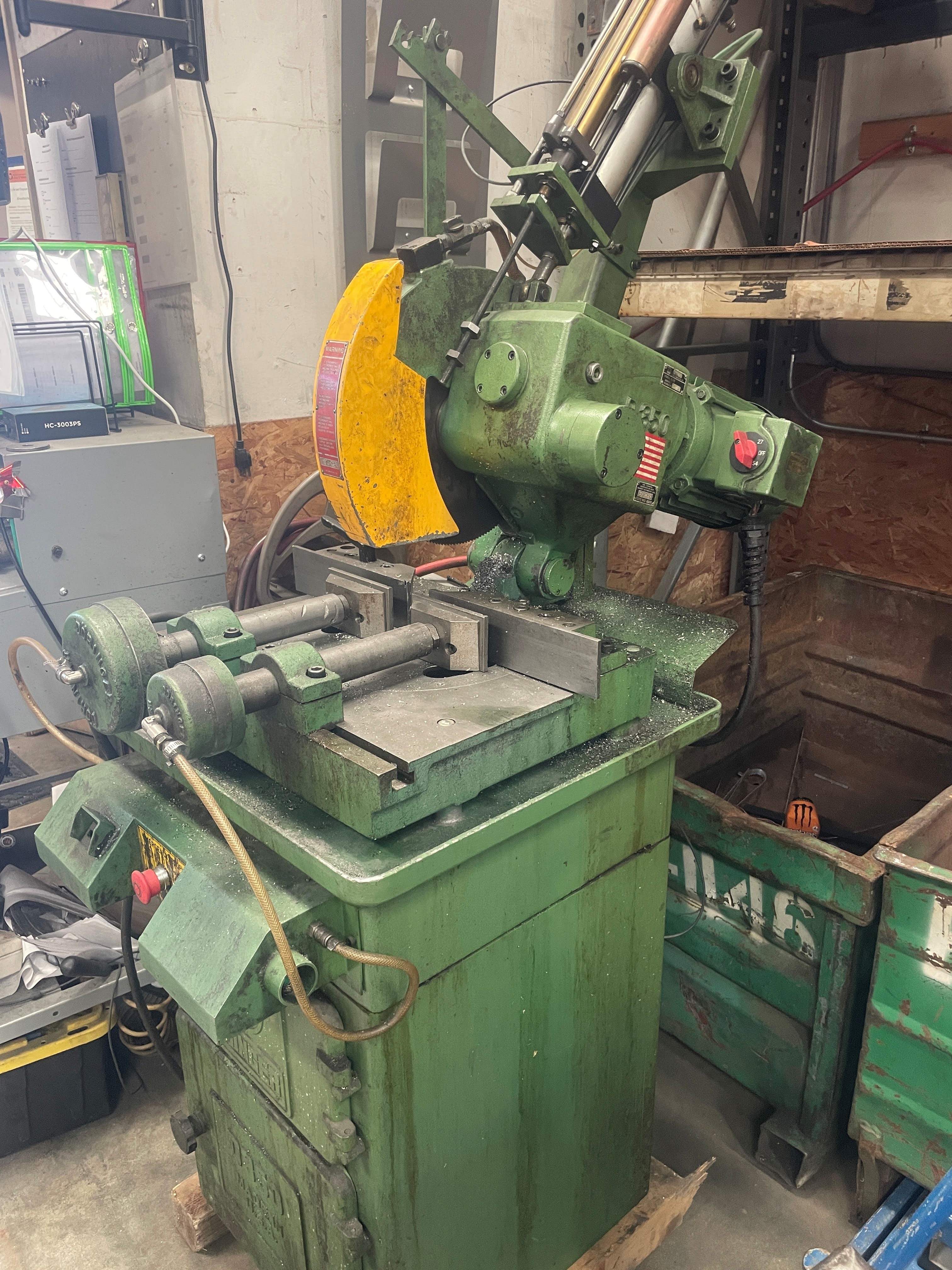

Doringer D350 Semi-Automatic

Cold Circular Saw

• NOTES – damage to air vise but has no affect on the pressure to both sides of the vise.
• Customer is selling it because they bought a new one and dont have the room to store it at their warehouse.

Specification

Manufacturer                          Doringer

Model                                      D350 SA

Serial Number                         24714

Saw Type                                Semi-Automatic Cold Circular Saw

Maximum Blade Diameter     14″ (350 mm)

Motor Horsepower                  3 HP

Voltage                                   220V 3 Phase

Blade Speeds                          27/54 or 54/108 RPM

Gear Reduction                       31:1

Saw Head Miter                      0°–45°

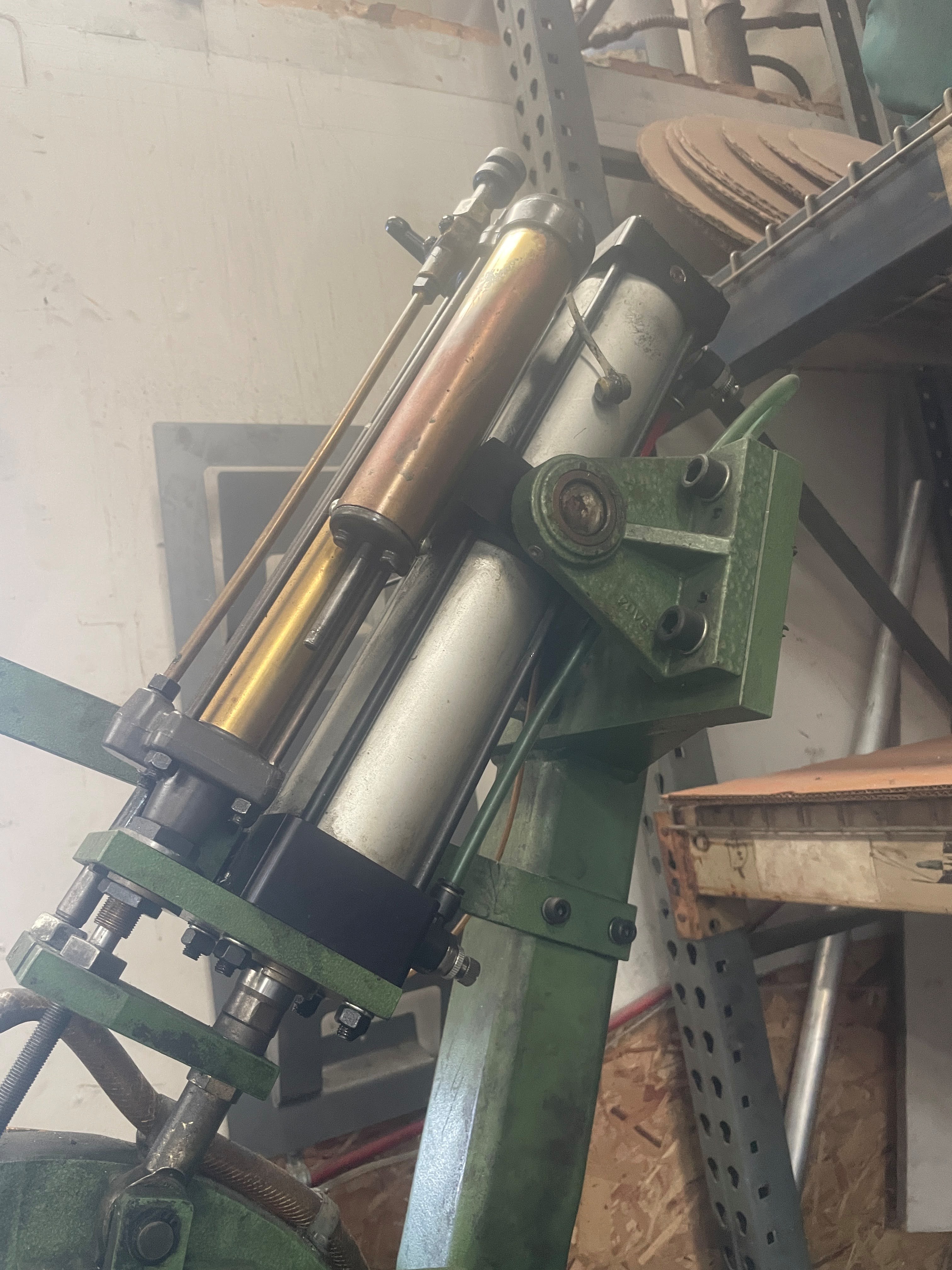

Feed System                            Hydro-pneumatic automatic downfeed and return

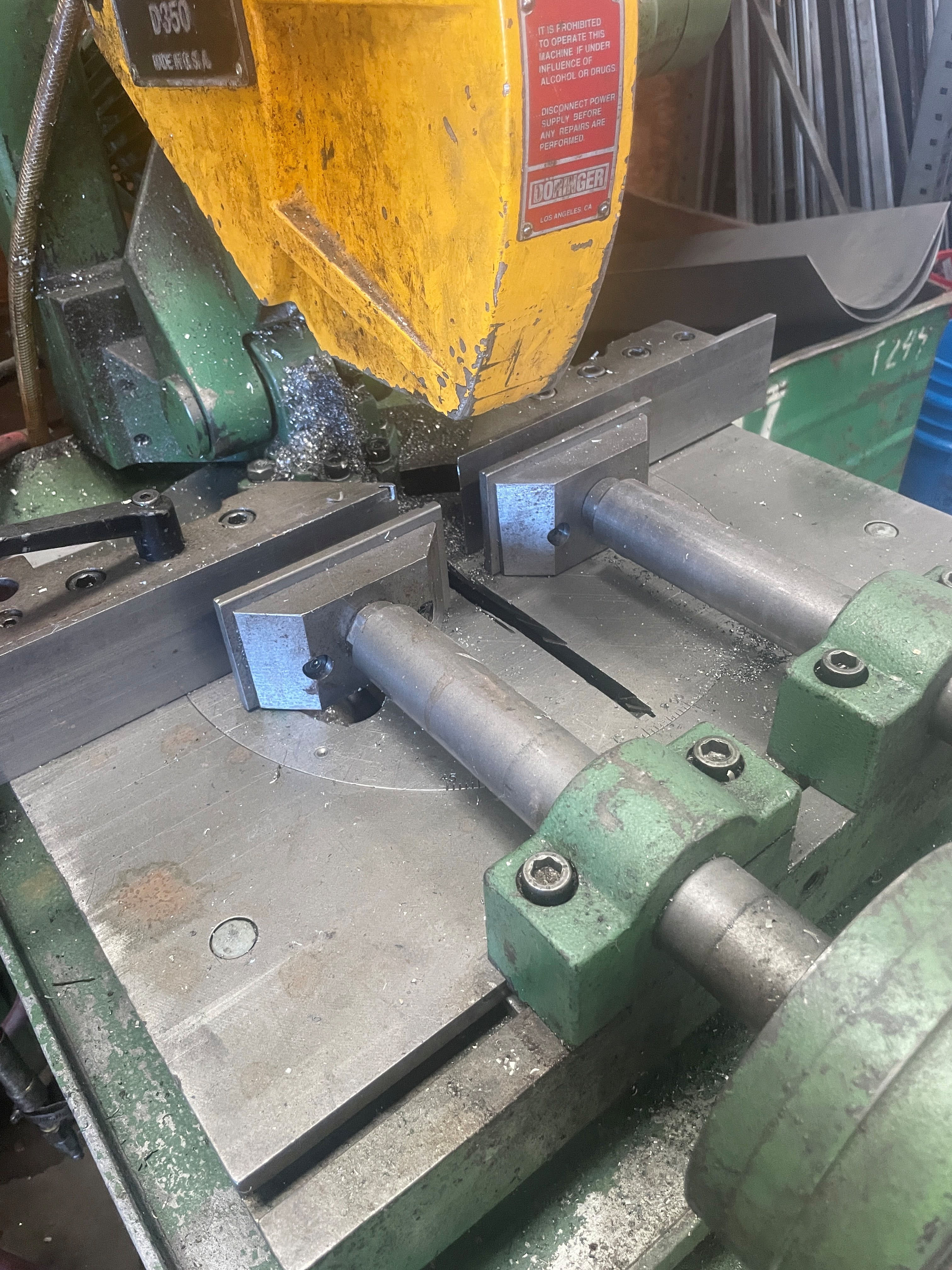

Material Clamping                  Dual pneumatic vises

Clamping Force                      Up to 8,000 lbs at 100 PSI

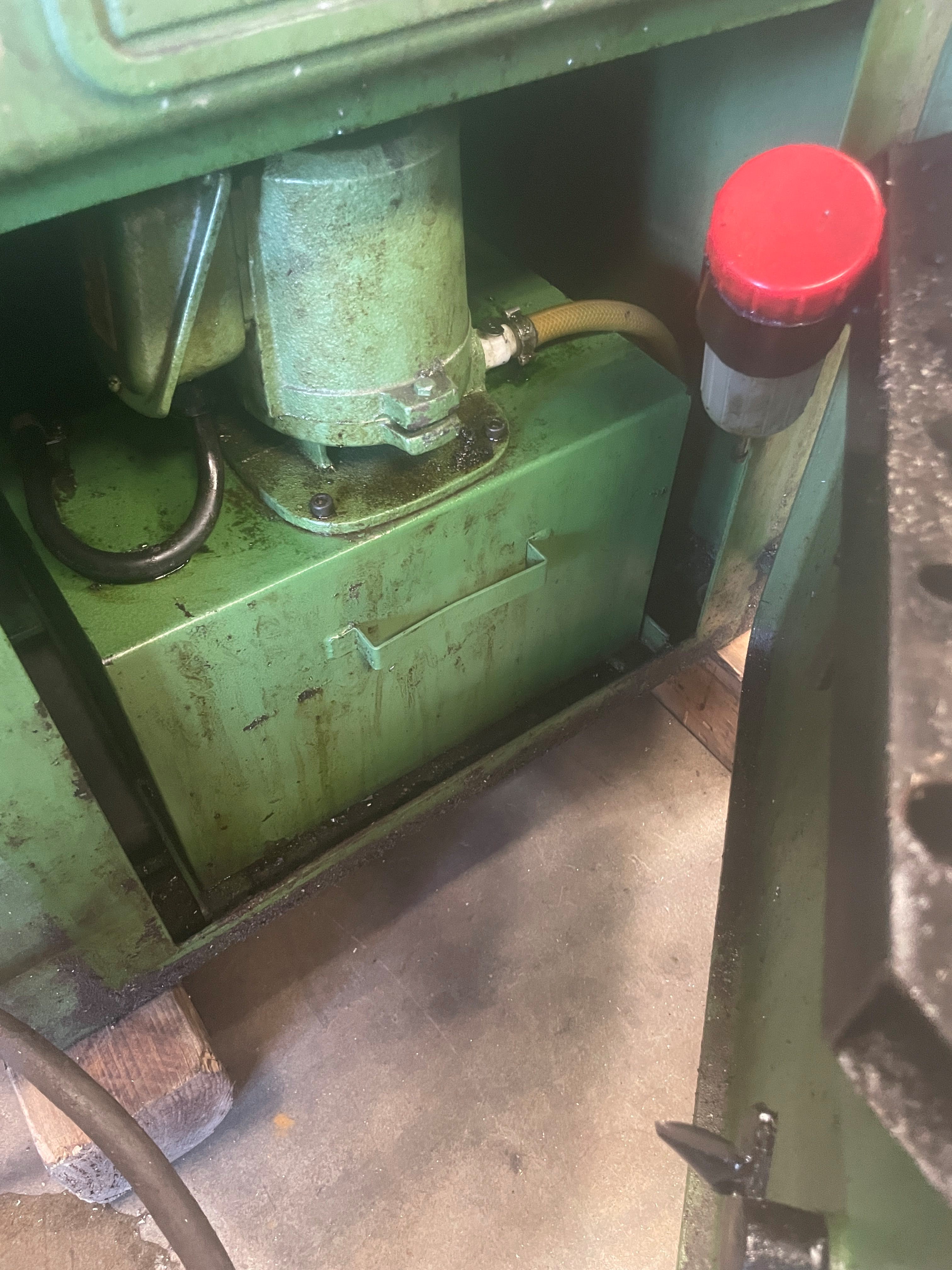

Coolant System                       Electric pump with recirculating tank

Blade Type                              High-Speed Steel (HSS)
