Elumatec SBZ130 – 8.5M (2014)
Profile machining centre
SBZ 130 – 8.5 m
Max. machining length with profile end machining, 8,380 mm
Max. machining length without profile end machining, 8,500 mm
3-axis profile machining centre
Designed for economical and efficient machining of aluminium, steel and stainless steel profiles
All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces
The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles
The turret head can be equipped with eight tools or four angle routing heads
Automatic clamp positioning enables the machine to position the material clamps
3-axis controller
The tool spindle is designed as an additional axis
Angle heads for lateral and profile end machining

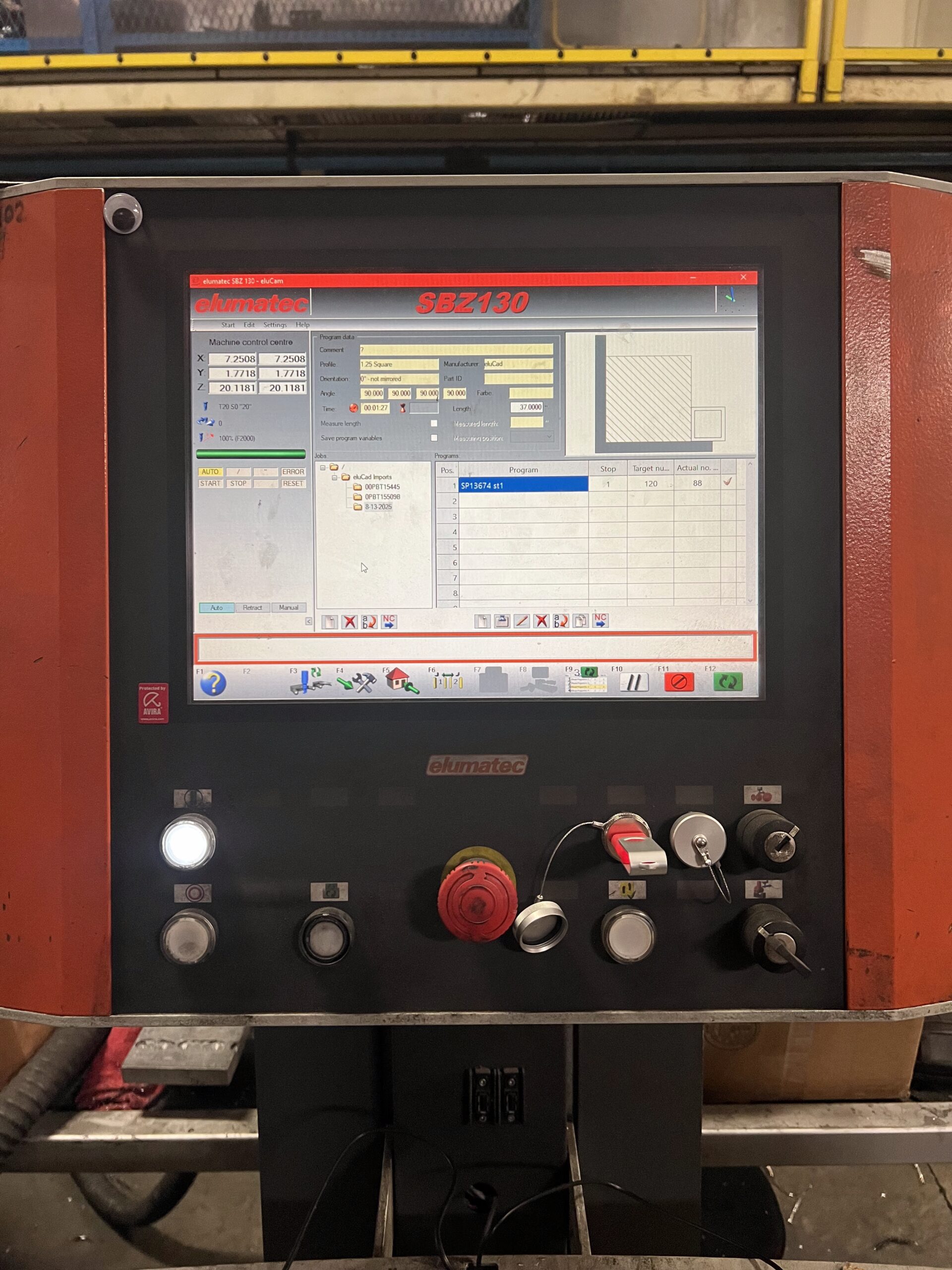

18.5″ panel PC, USB ports and network connection
Windows operating system XP Version
Specifications:
Traverse path X-axis, 4,200 mm, 7,200 mm, 8,500 mm, 10,200 mm, 11,500 mm
(additional lengths on request) Vmax. 60 m/min.
Traverse path Y-axis, 485 mm, Vmax. 60 m/min.
Traverse path Z-axis, 340 mm, Vmax. 60 m/min.
Max. spindle speed 6,000 rpm, 18,000 rpm with high-speed spindle
Spindle power output 5.5 kW
Tool changer for eight tools on a turret head
Compressed air supply 7 bar
Power supply 480/60/3
Air consumption per minute 100 l with spraying
Options Included:
1 Rotating Angle Head
High Speed Spindle 18,000 RPM
Chuck ER32
Drill & Cutter Guide Change Chuck
Elu Clad
Elu Soft 4/5 Axis Option
If you would like more information about this machine please contact us!!!!
