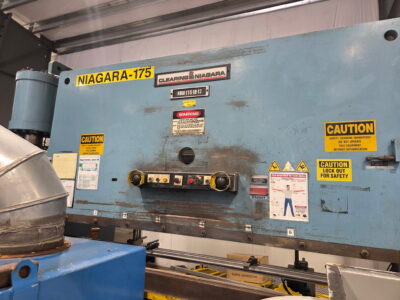

Niagara CNC Press Brake
HBM-175-10-12
175 Ton X 12’
Specifications:
SERIAL ………………….. P54307
MODEL …………………… HBM 175-10-12
CAPACITY ………………… 175 TON
OVERALL LENGTH …………… 12′
DISTANCE BETWEEN HOUSINGS …. 10’6″
STROKE ………………….. 10″
OPEN HEIGHT ……………… 17″
CLOSED HEIGHT ……………. 7″
RAM SPEED, RAPID …………. 130 IPM
RAM SPEED, APPROACH ………. 65 IPM
RAM SPEED, PRESSING ………. 21 IPM
RAM SPEED, RETURN ………… 130 IPM
FLOOR STANDING …………… NO PIT REQUIRED
DUAL PALM BUTTONS ………… YES
ELECTRIC FOOT PEDAL ………. YES
RAM ADJUSTMENT …………… POWERED
MOTOR …………………… 20 HORSEPOWER
