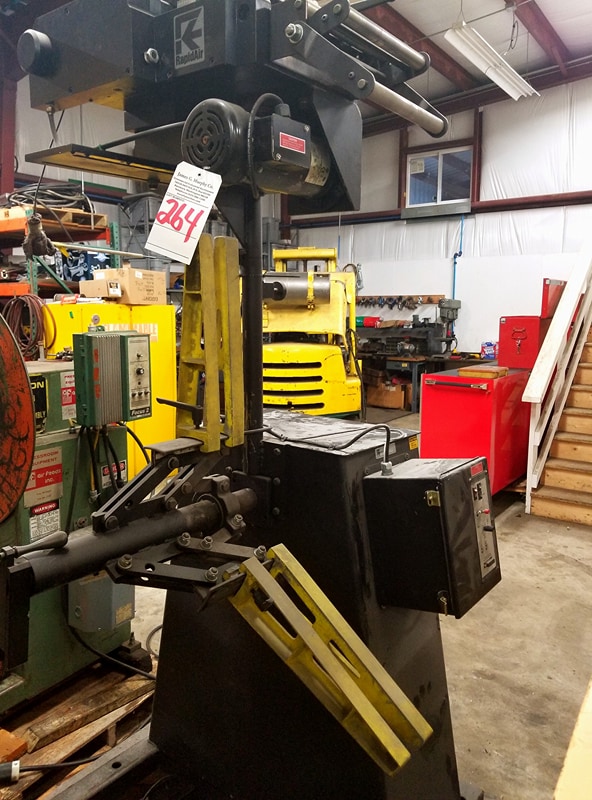

Rapid Air Model SBX8 Roll Stock Straightener & RMA 1506 Non-Powered Stock Reel
SPECIFICATIONS ON STRAIGHTENER: SBX8
- Maximum stock width 8 in.
- Effective straightening range .004 -.070 in.
- Upper idler rolls 4/ .875 in. dia.
- Lower drive rolls 5/ .875 in. dia.
- Pinch rolls 2 / 1.750 in. dia.
- Speed range 0-825 in./min.
- Motor 3/4 HP D.C.
- Power requirements 115Vac, 1ph, 50/60Hz.
- Non-powered stock reel capability 1,500 lbs. (see optional equipment)
- Material Flow Standard Right to Left
STRAIGHTENER STANDARD FEATURES
HARDENED GEAR DRIVEN STEEL ROLLERS: Rugged straightening and pinch rolls are all specially hardened and surface ground to exacting tolerances. We use only precision needle bearings for all roller shafts.
SWING-OPEN TOP: A swing-open top for all straightener models make loading or roll cleaning process easy. A spring-loaded counterbalance feature keeps the top in the up position when it’s unlocked and raised. Exact roller adjustment settings are maintained through the loading process.
SIX-WAY UPPER ROLLER ADJUSTMENT: The patented platen design for the upper bank of rollers on the SB straighteners gives you a way to make six different roller position adjustments. The position setting for rollers is displayed on a handy indicator on the side of the platen. This unique adjustment system provides capabilities to straighten material with severe coil set without over straightening when mild coil set is encountered. It also enables you to curve exiting material up or down to suit your application needs.
PARALLEL ROLL ADJUSTMENT: Straightener induced camber can be greatly reduced by an eccentric adjustment for pinch rolls. This factory set precision adjustment can be changed in the field if required.
SPECIFICATIONS ON REEL RMA1506
- Maximum weight capacity 1500 lbs
- Maximum coil width 6″
- Maximum coil OD 48″
- ID expansion range 14″ to 22″
- Drag brake type Mechanical
- Set of (3) 48” outer keeper arms Included
- Non-powered mechanical drag brake.
- Three-arm mandrel with manual expansion is standard on all models.
- One set of three outer keeper arms for 48-inch coil O.D. per mandrel.
If you would like a quote on this machine, please contact us!
