Rogers Air Compressor
K-75-125 W/ Enclosure
Hankison Flex 8.1 Air Dryer

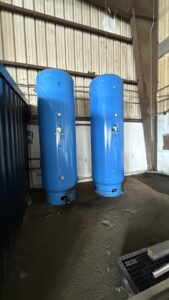

2 Vertical 500 Gallon Air Receiver
Rogers – K/KV Series Rotary Screw Air Compressor
Rogers K/KV Series single-stage rotary screw air compressors has a highly customizable open frame construction with many features and options to suit individual needs.
- Fixed Speed or VFD
- Air or Water-Cooled
- 40 – 350 HP (VFD starts at 50 HP)
- 26 – 1582 SCFM
- 40 – 210 PSIG
Specifications:
Motor 75
Flow ACFM 353 Max
Nominal Motor RPM 1800
*500 Gallon Vertical Air Receiver (36” Diameter X 116”)
ASME Coded for 165 PSIG
Flex Series 8.1 Cycling Refrigerated Compressed Air Dryer
Hankison FLEX Series refrigerated dryers are a sustainable energy-saving solution that harnesses the latest advancements in heat transfer technology. These refrigerated dryers are designed to effectively eliminate liquid contamination from compressed air and provide cost-effective energy savings by matching electrical power consumed in direct proportion to air demand.
Specifications on Flex 8.1
Inlet Flow 800 SCFM
Pressure Drop 3.7 PSI
Voltages 460/6/60
Inlet/Outlet FLG 3”
Operating Power 4.30 KW
