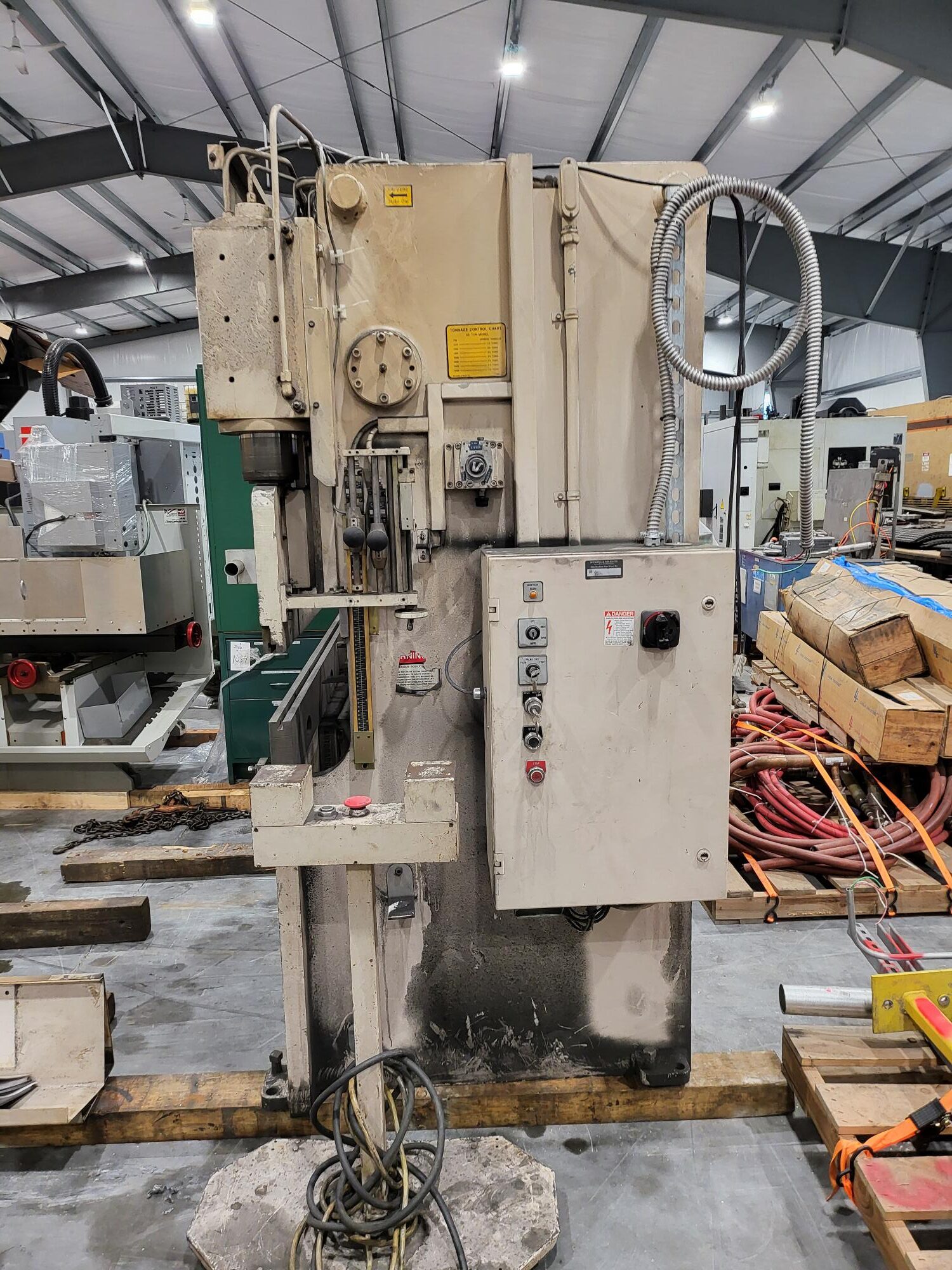

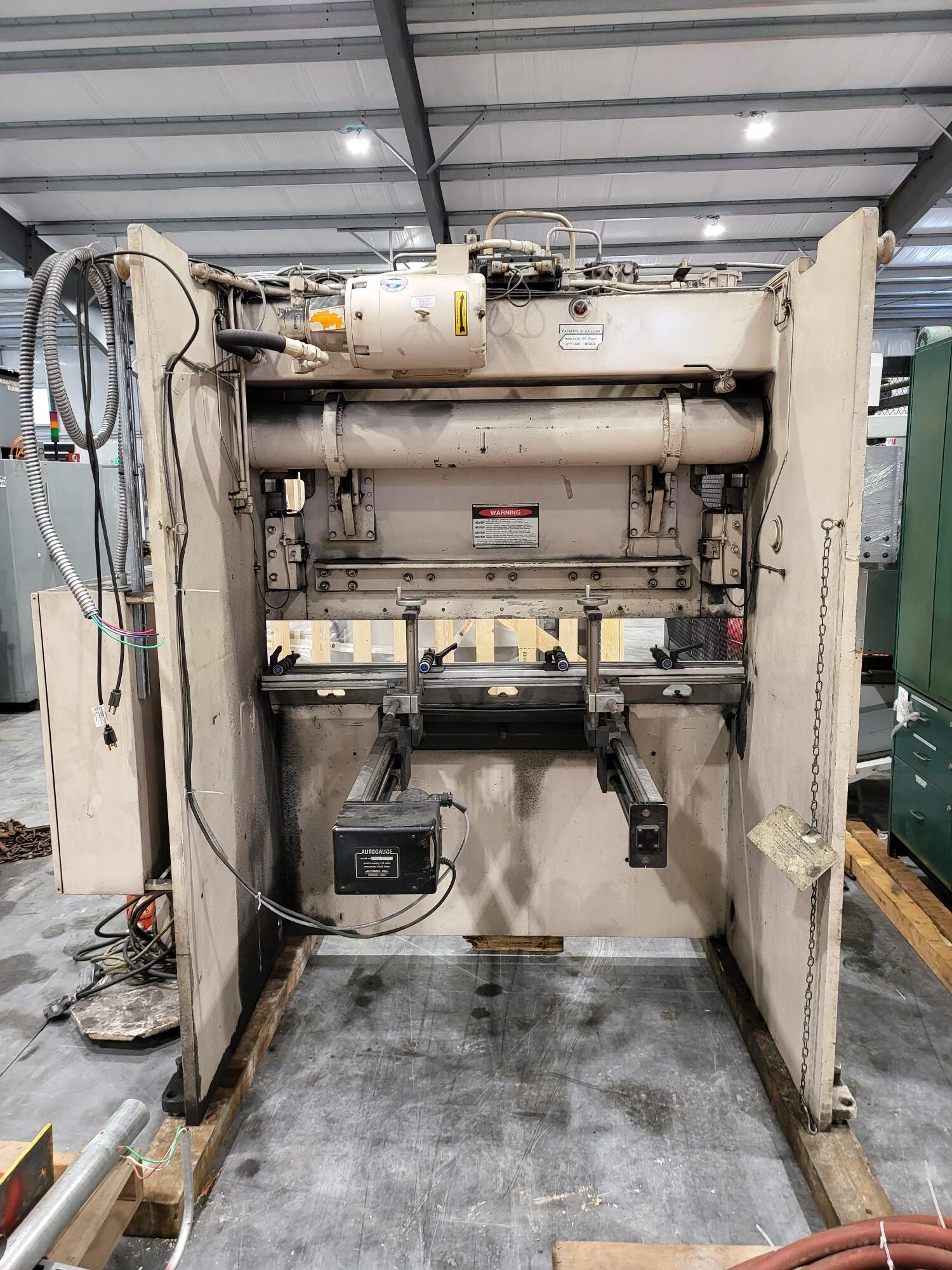

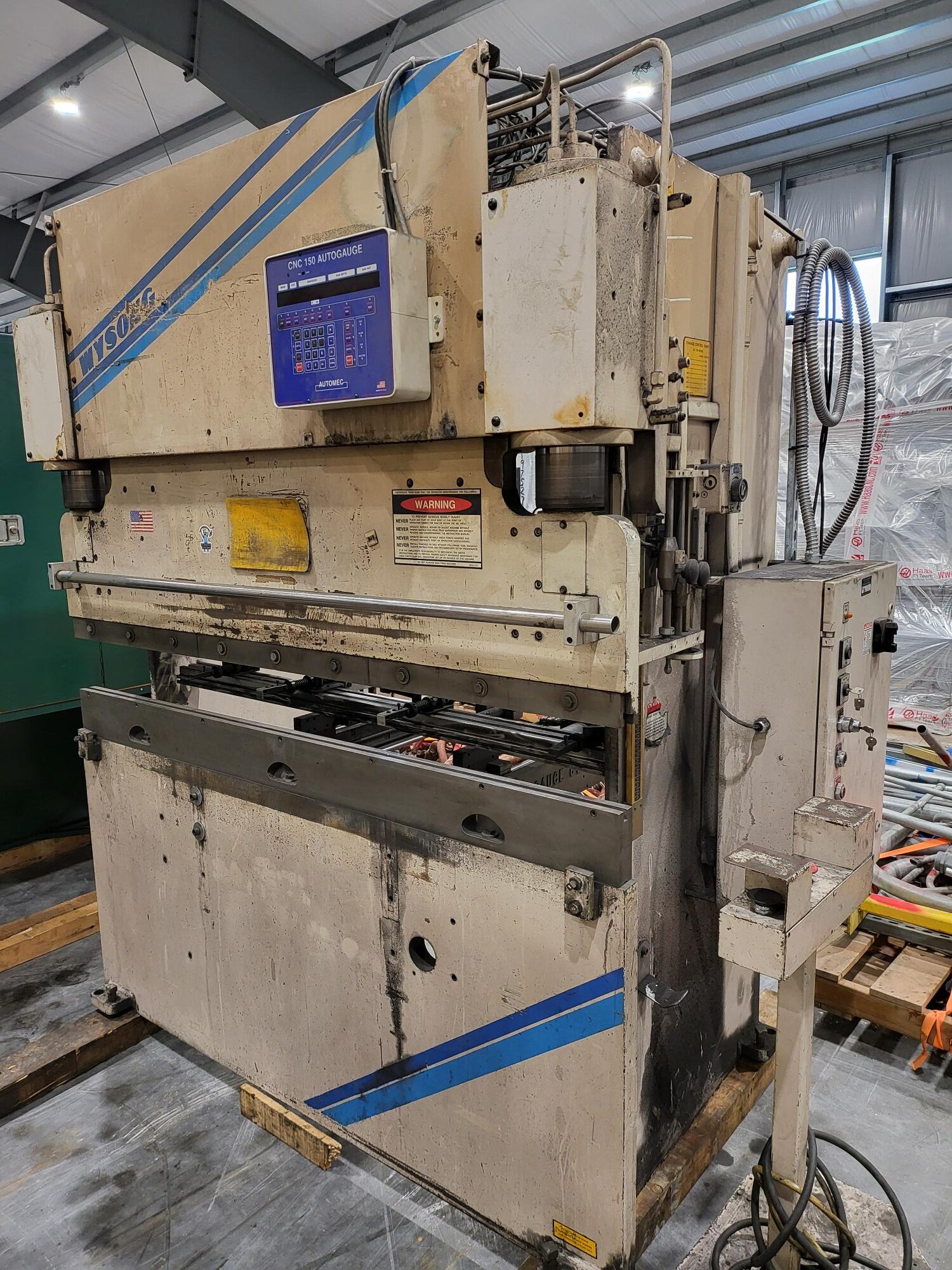

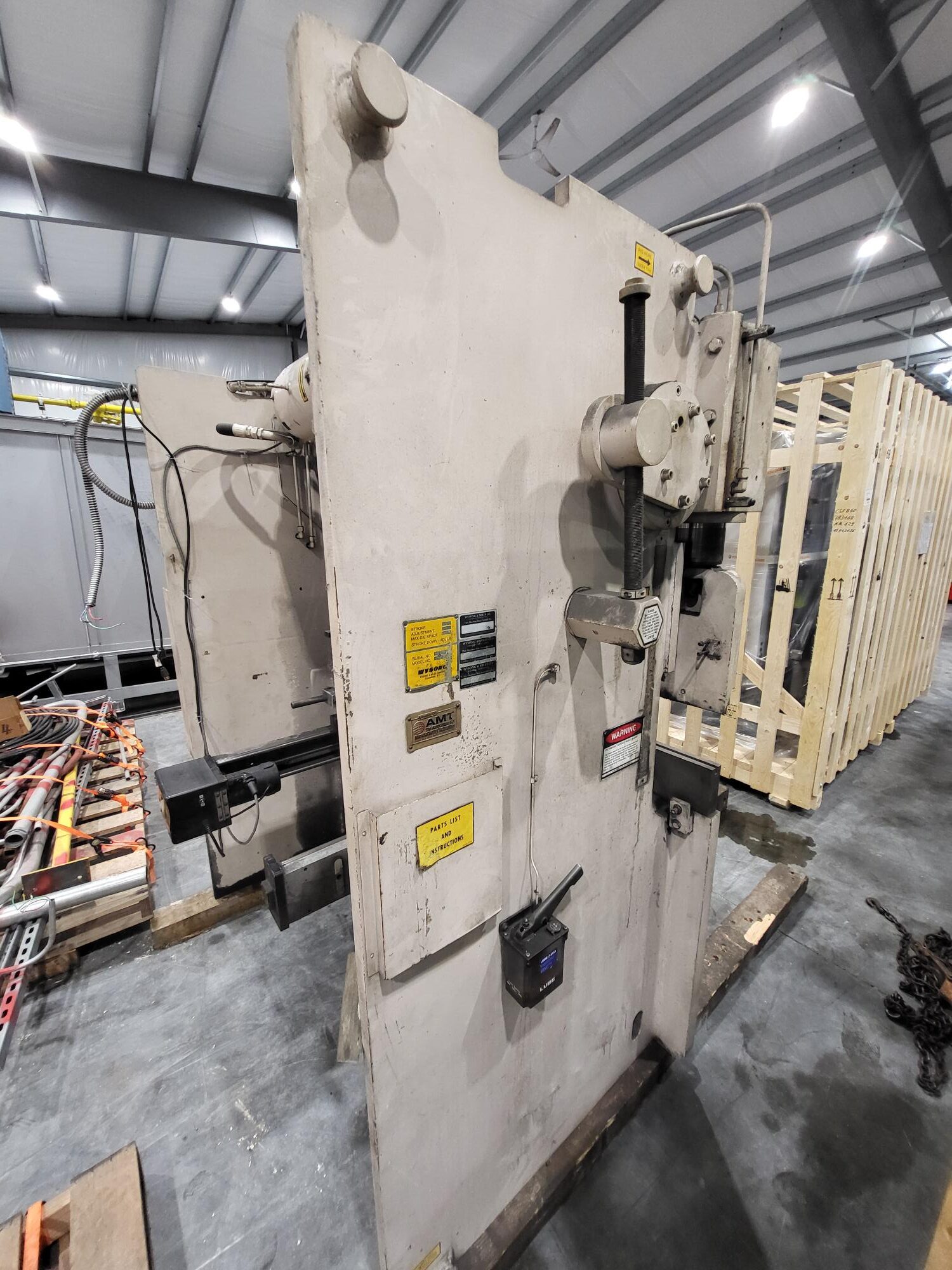

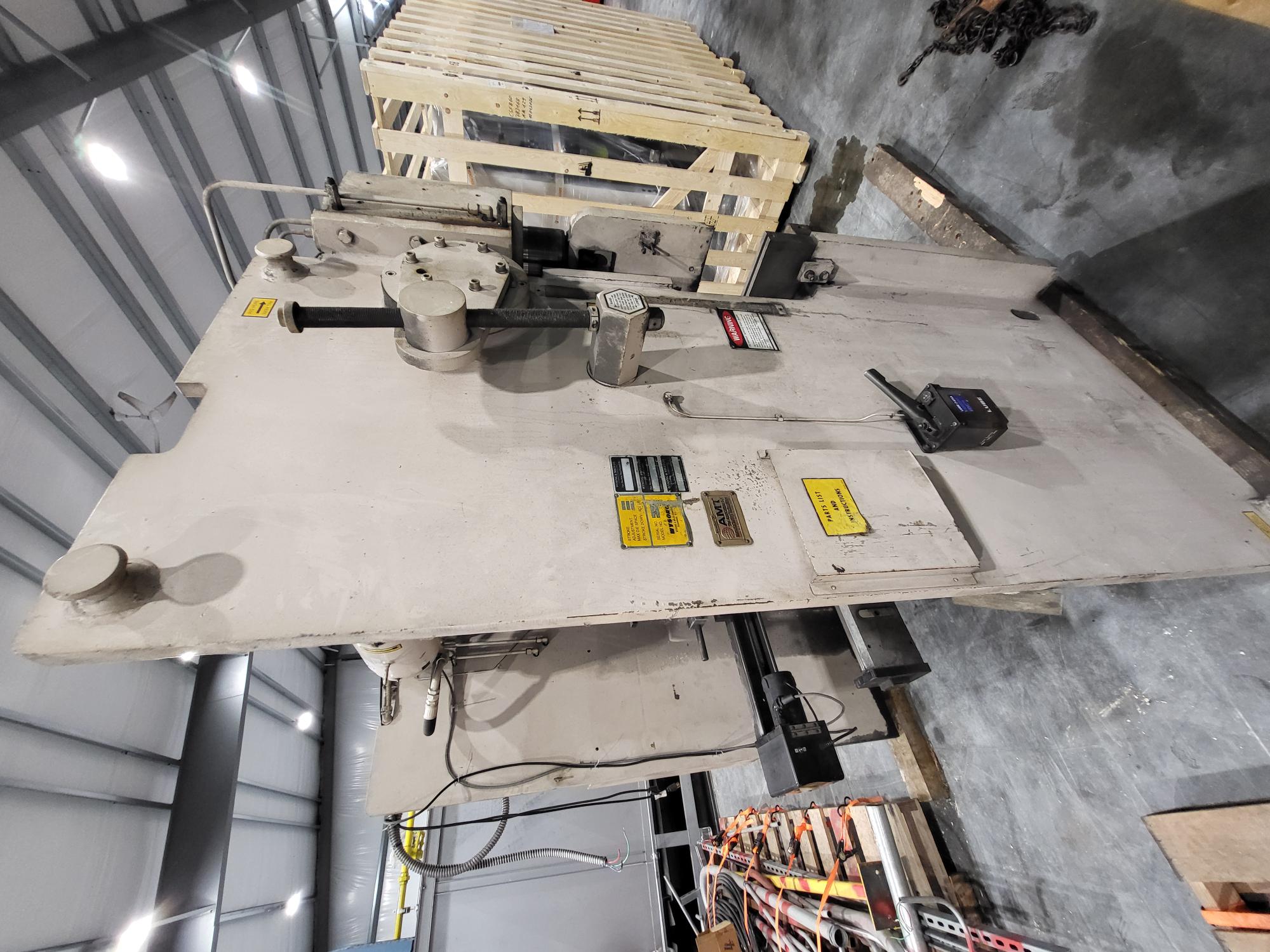

Wysong 60 Ton x 6′ Hydraulic CNC Press Brake
Model MTH 60-72
Specifications:
Tonnage 60
Length of bed & ram 72″
Distance between housings 62″
Bending capacity, 6′ length6′ x 10 gauge, mild steel
Bending capacity, 5′ length5′ x 7 gauge, mild steel
Stroke 6″
Adjustment 9″
Open height 15″
Shut height 9″
Throat depth 6”
Approach speed 300 IPM
Pressing speed 20 IPM
Return speed 215 IPM
Oil capacity 15 gallons
Motor 7.5 HP / 1760 RPM
Volts 208-230/460
Cycles 60 Hz
Amps 22.2 – 21.6 / 10.8
Approximate dimensions 110″ x 67″ x 105″ high
Approximate weight 6,200 lbs.

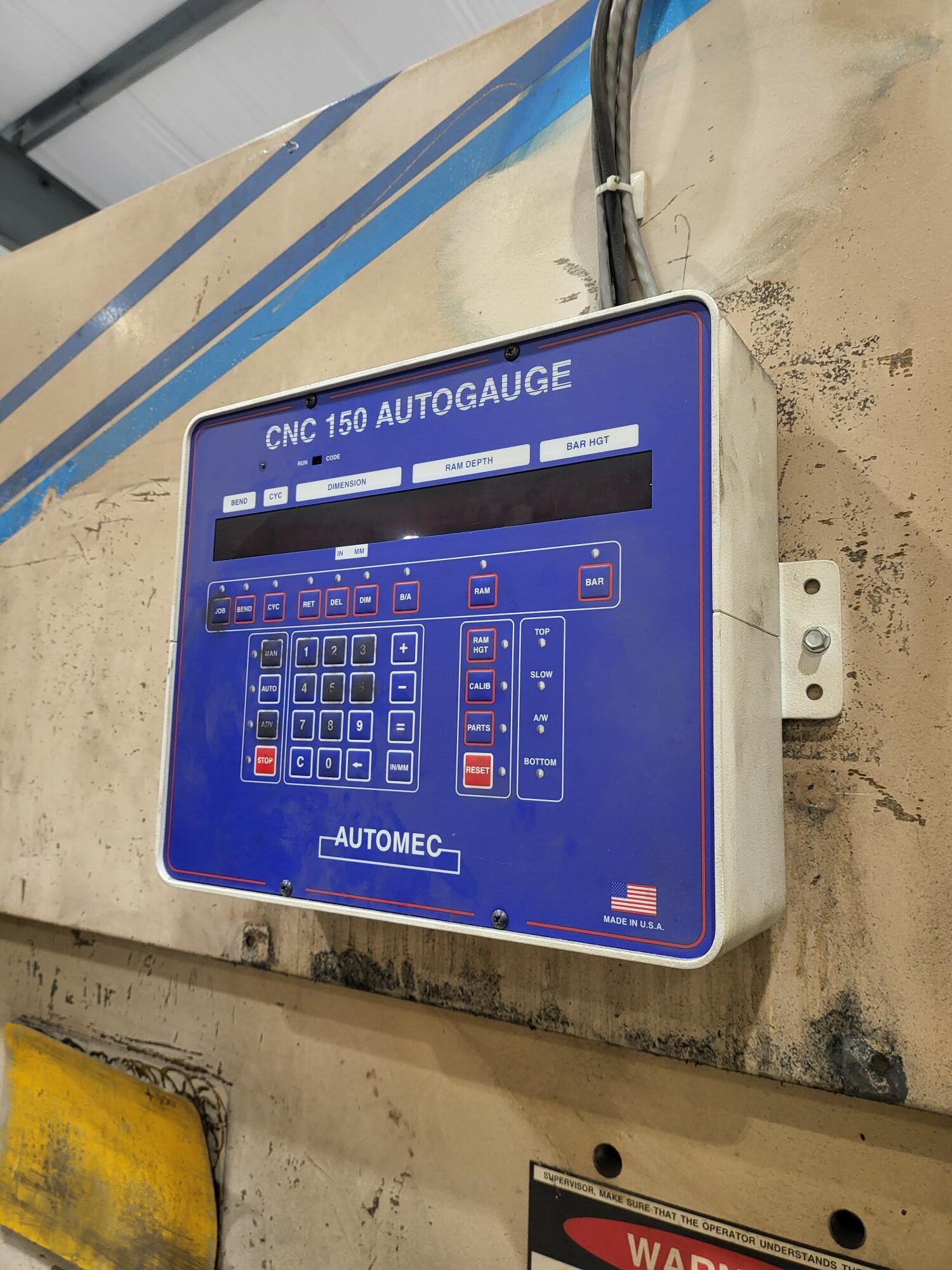

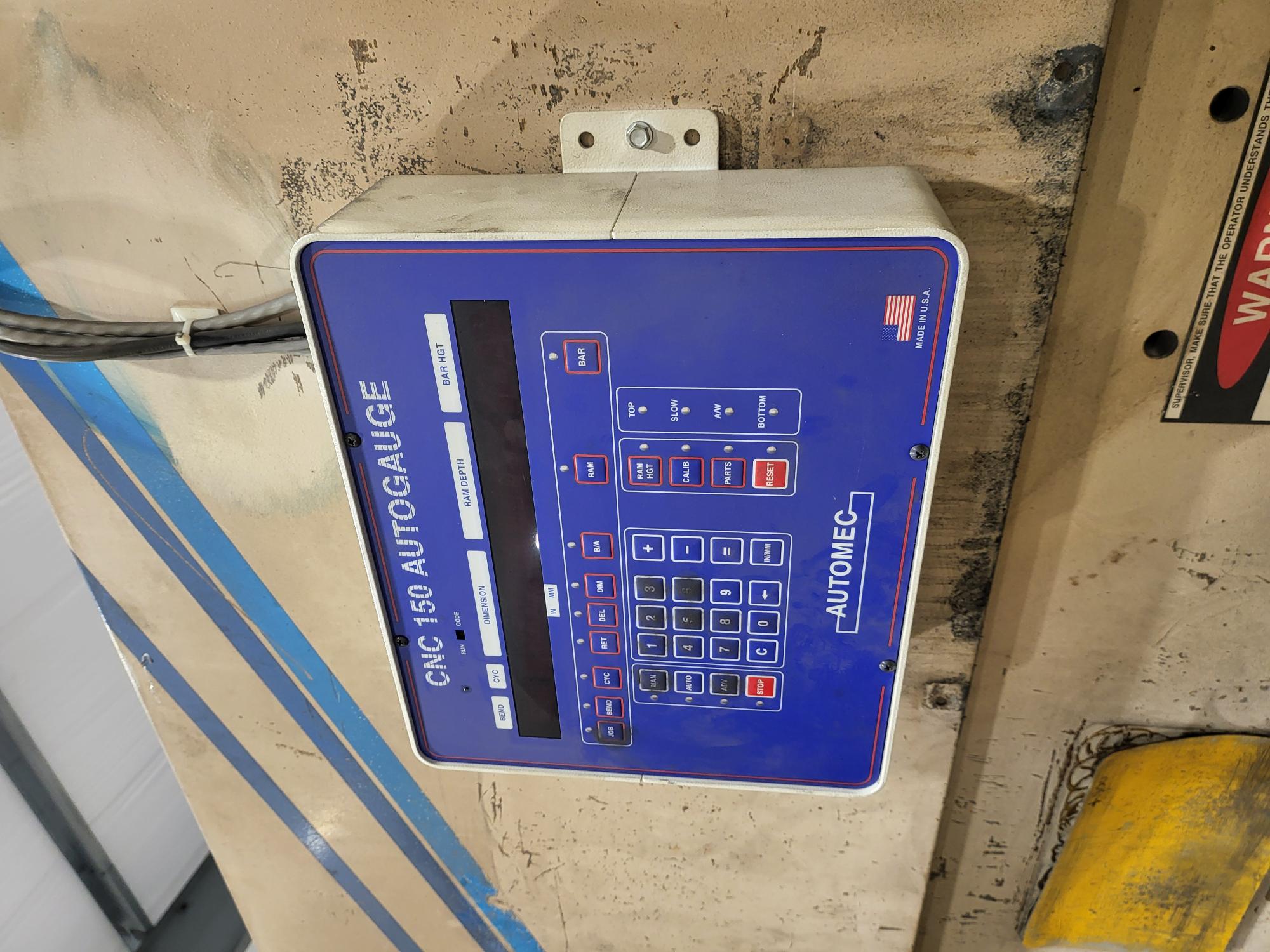

Automec CNC 150 2-Axis Cat 1 Control
