CY2D LM3015
INTRO

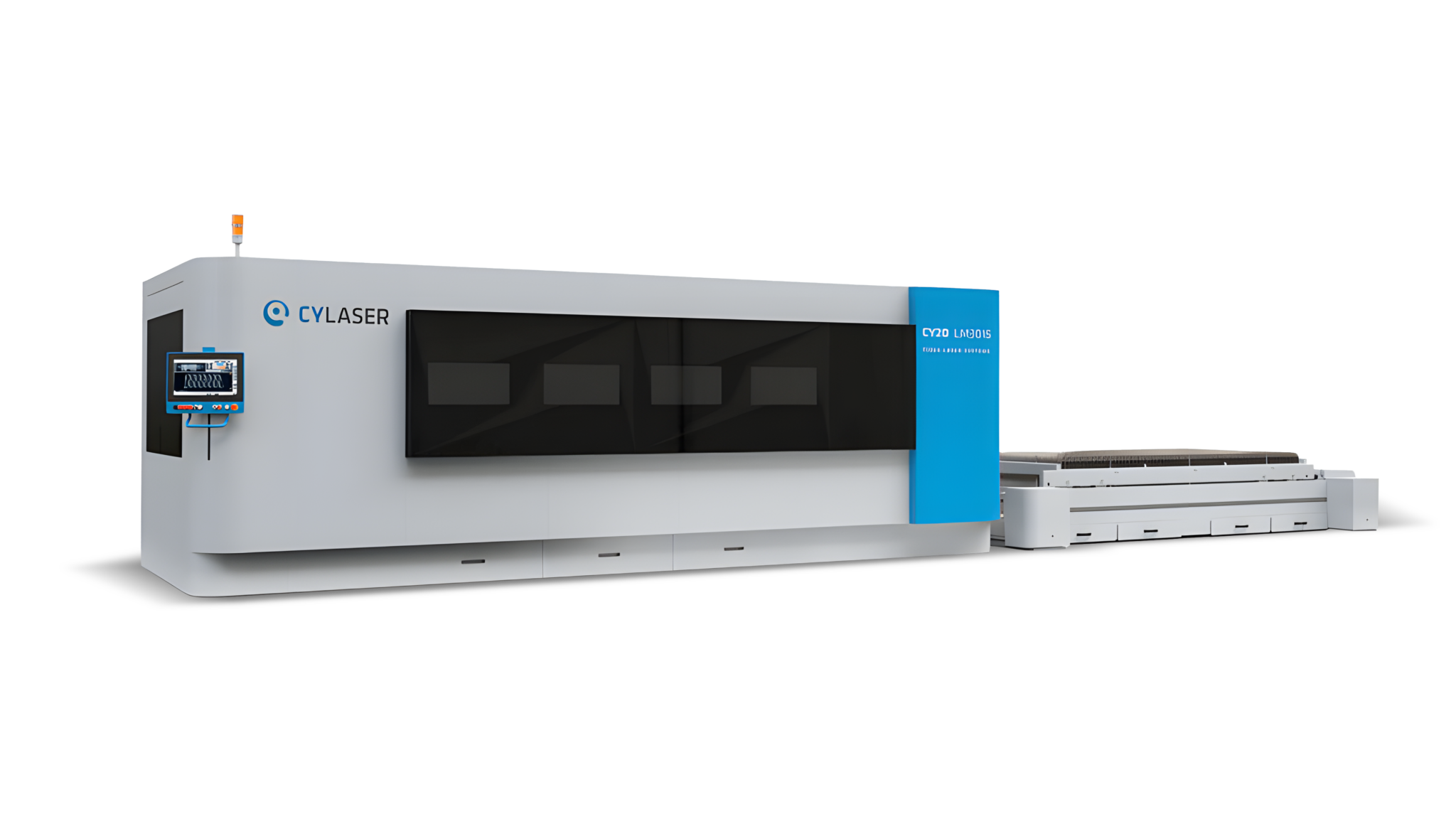

Introducing the CY2D LM3015 Fiber Laser Cutting System, a cutting-edge solution designed to harness the full potential of fiber laser technology. The EVO III proprietary cutting head, developed and built by Cy-laser, sets new standards for excellence in the fiber laser industry, offering unparalleled precision and performance based on extensive experience in the field. Its construction philosophy, based on off-the-shelf components and interoperability, offers reliability and adaptability.
The CY2D LM3015 seamlessly integrates with the leading CAD-CAM software available in the market, providing a user-friendly and versatile experience. The system’s “Airplane” structure guarantees absolute precision and mechanical stability, ensuring consistent and reliable results with dual-sided access to the cutting area, maximizing convenience and ease of operation.
It also allows flexibility in material flow by accommodating both left and right feeding options. Additionally, the system offers the option for load-unload automation setup, streamlining the workflow and increasing productivity.
TECHNICAL DATA
| CUTTING AREA | ||
|---|---|---|
| Cutting Area X | inch | 122.05 |
| Cutting Area Y | inch | 61.02 |
| Cutting Area Z | inch | 4.72 |
| NOMINAL SHEET SIZE | ||
|---|---|---|
| Nominal Sheet Size X | inch | 120 |
| Nominal Sheet Size Y | inch | 60 |
| OVERALL DIMENSION AREA | ||
|---|---|---|
| Length, ca. (L) | inch | 445 |
| Width, ca. (W) | inch | 118 |
| Height, ca. (H) | inch | 87 |
| Maximum workpiece weight | Lb | 1,540 |
| Max workpiece load per square foot | lb/sf | 40.89 |
| Table Changeover Speed | inch/sec. | 14.57 |
| Table Changeover Time | sec. | 30 |
| AVAILABLE WATTAGE | ||
|---|---|---|
| up to 20kW | ||
| AXIS KINEMATIC | ||
|---|---|---|
| Maximum positioning speed axis X/Y | inch/min. | 5,906 |
| Maximum positioning speed simultaneous axis X/Y | inch/min. | 8,268 |
| Massimum Axis Acceleration | G | 4 |
| ACCURACY & PRECISION | ||
|---|---|---|
| Meccanical Position Accuracy | inch | 0.000984 |
| Meccanical Edge Detection Accuracy (over 10 inch travel) | inch | 0.001968 |
| Cut Perpendicularity Tolerances | inch | 0.000393 |
| Machine Weight (without Exaust Filter, Chiller, Laser Generator) | Lb | 30,800 |
| Required Dust Collector | 4C | |
| Color | RAL | 7040 / 5015 |
| Voltage Required (**) | V Triphase / HZ | Upon Request – 50 / 60 |
KEY FEATURES
CY2D LM3015: Fiber Laser Cutting System 5’X10’ (3000MM X 1500MM) Ideal for Mass Production
- Specifically designed to take advantage of fiber laser technology and processes
- Construction philosophy utilizing off-the-shelf components to avoid forced customer retention
- EVO III proprietary cutting head: designed and built by Cy-laser, combines years of process experience to create the most advanced cutting head in the industry
- Compatible with the leading CAD-CAM software on the market
- Airplane Structure provides absolute precision and mechanical stability
- New, more compact, and modern design
- Accessibility to the cutting area on both sides
- Left or right feeding to optimize material flow
- Load-unload automation set-up is available
