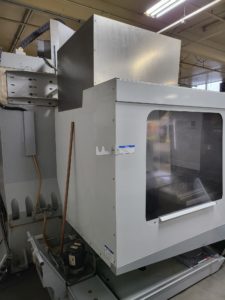

HAAS VF-6-40TR CNC Machining Center
MFG: 2009
The VF-6/40TR is a versatile 5-axis machining center based on the popular VF-6/40 VMC platform. It provides full simultaneous five-axis motion, or can position a workpiece to almost any angle for machining. For added flexibility the trunnion is mounted directly to the machine’s standard T-slot table, and can easily be removed when jobs require only 3-axis machining.
Capable of full 5-axis contouring
Includes high-speed machining software
Includes side-mount tool changer
Made in the USA
The Haas Control
CNC Control Cabinet Cooler
Control Touch Screen
Media Display M-Code; M130
HaasConnect: Remote monitoring
Early Power-Failure Detection Module
Ethernet Interface
WiFi Connection for the Haas Control
HaasDrop
Large Remote Jog Handle with Touchscreen Display
Rigid Tapping
Dynamic Work Offsets and Tool Center Point Control
High-Speed Machining
Standard Program Memory, 1 GB
Power Surge Protection
Motion Time 64,028
Spindle Time 64,542
Options:
Side Mount 24 Pocket Tool Changer
Programmable Coolant Nozzle
Auger
High Speed Machining
Remote Jog Handle
Rotation and Scaling
Two Speed Gearbox
10,000RPM Spindle
New Spindle
Specifications:
X Axis Travel: 64″
Y Axis Travel: 32″
Z Axis Travel: 30″
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Cutting 5 00 IPM
Table Size: 64″ x 28″
Max. Table Load: 4,000 Lbs.
Table Size: 12.2″ x 12.2″ Plater
Spindle Nose to Platter (~ Max): 11″- 19.0″
Spindle Nose to Table (~ Max): 4″- 34.0″
Max Table Load (Platter): 500 Lbs.
Spindle Motor: 40 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
A Axis – Tilt ± 120 °
B Axis – Rotation 360 °
Max Weight on Platter 500 Lbs.
Max Part Swing 31″
Rapids on A 50 °/sec
Rapids on B 50 °/sec
Max Cutting A 33 °/sec
Max Cutting B 33 °/sec
Dimensions: 195″ x 102″ x 135″
Weight: 26,100 Lbs.
