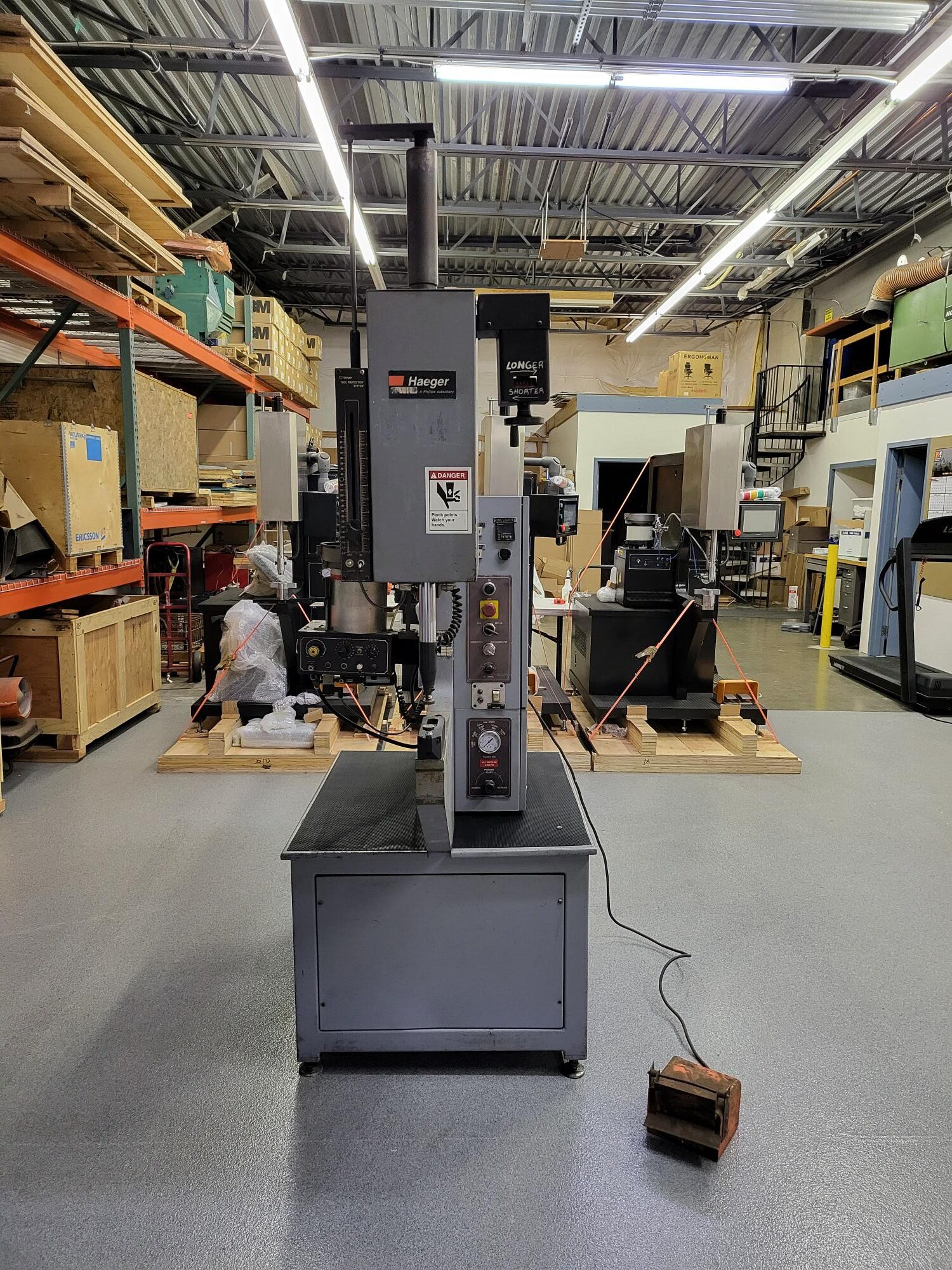

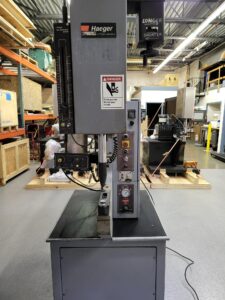

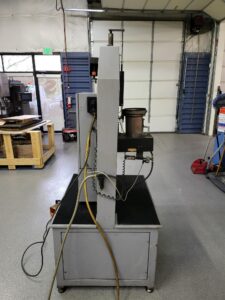

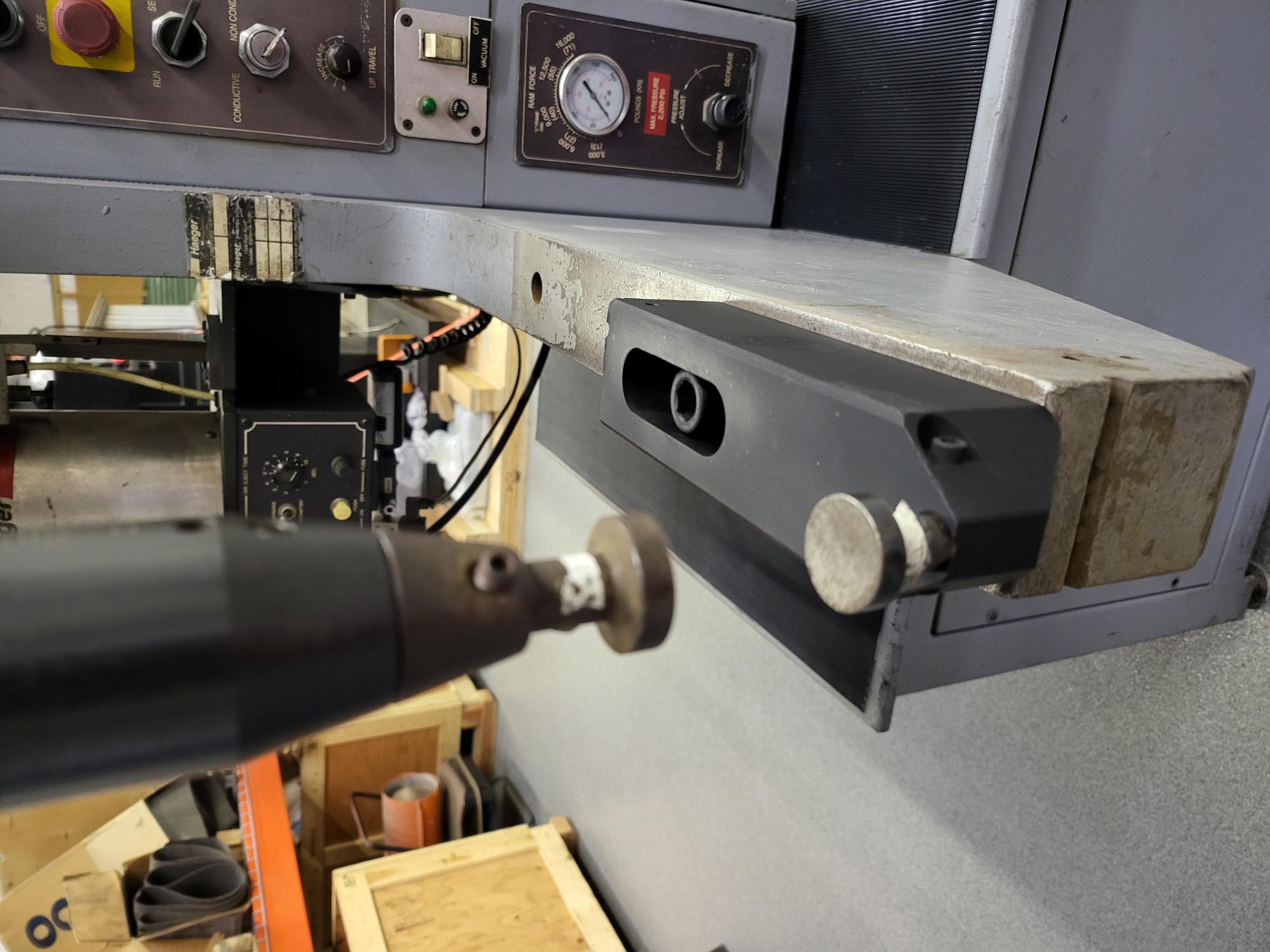

Haeger Hardware Insertion Press

Model 824

Model 824 MFG:1994

Machine Specifications

Force range………………………………………………………………………………. Adjustable up to 16,000 lbs.

Throat depth……………………………………………………………………………………………………. 24” 610mm

Stroke length…………………………………………………………………………………………… 0-8.5” Adjustable

Strokes per minute………………………………………………………………………………………… 40 at 1” stroke

Vertical up stroke………………………………………………………………………………… 3/8”-8.5” Adjustable

Electrical…………………………………………………………………………………. 220 to 575/3PH/50 or 60 HZ

Motor………………………………………………………………………………………………………………………. 3 HP

Oil tank reservoir…………………………………………………………………………………. 18 gallons (80 liters)

Repeatability…………………………………………………………………………………………… +/-1% of force set

Features and Benefits

Hydraulically powered.
Safe, even application of pressure ensures proper seating of fastener.
Ability to apply pressure at any point in stroke.
Ability to jog ram up or down.
Reversible at any point in the stroke.
Patented safety system.
Allows operator to work fast, confidently, without cumbersome tool guarding.
No time consuming safety set-up necessary before use.
Always operational regardless of pressure and stroke settings.
Tooling Protection System T
Monitors machine operation to protect tooling from damage.
Significantly decreases risk of part damage during hardware insertion.
Designed for easy set up and operation.

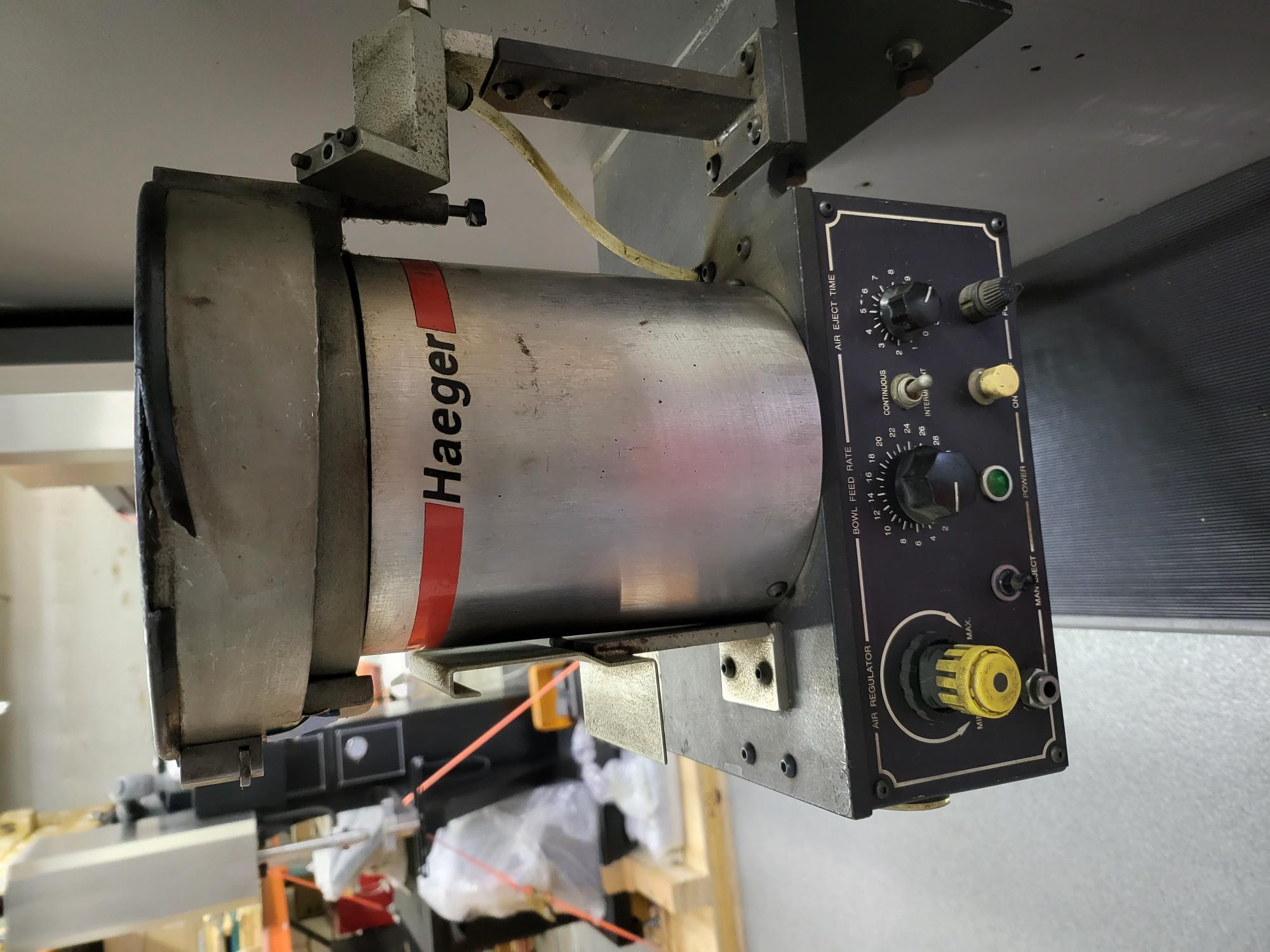

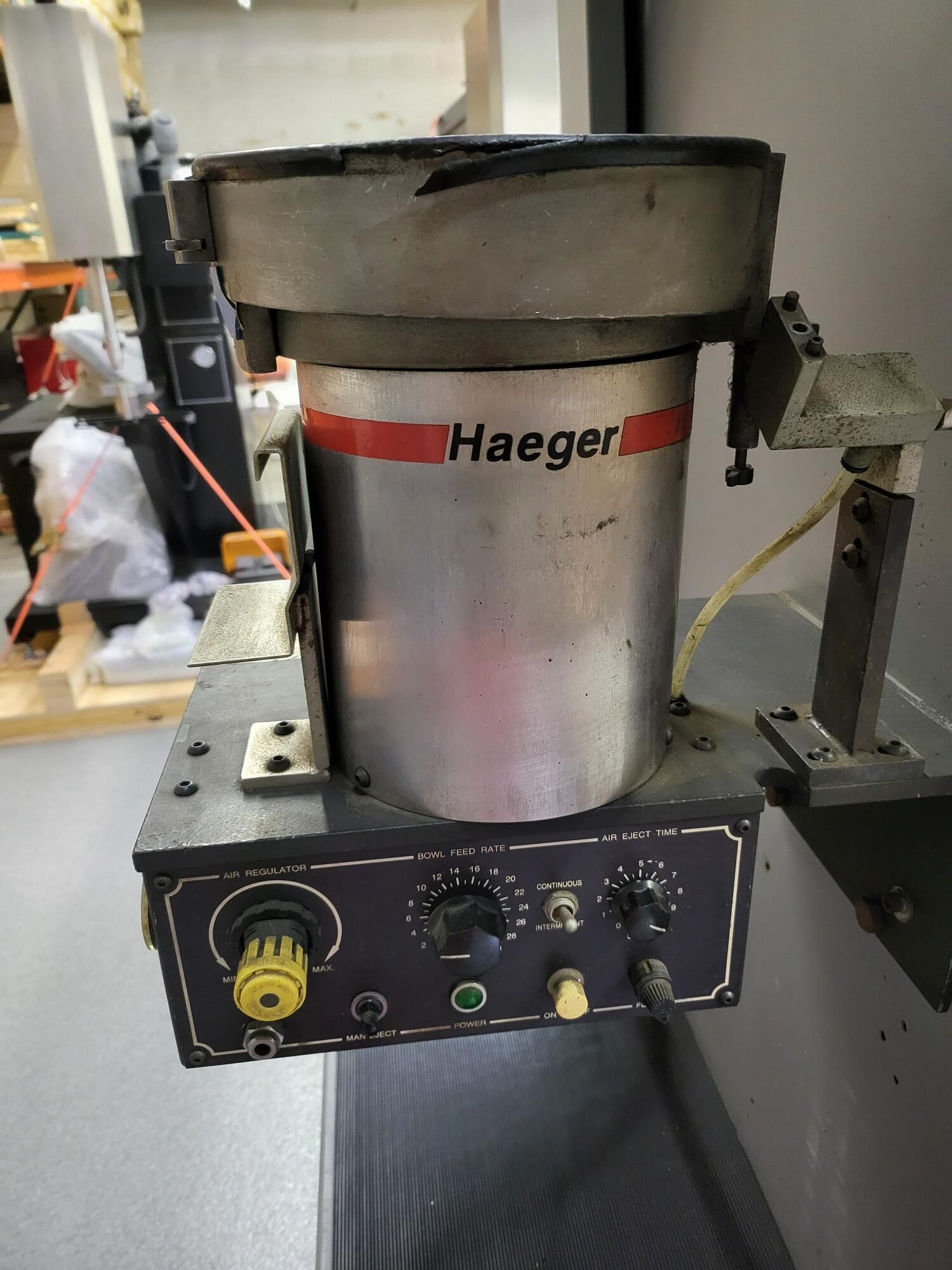

For use in automatic mode.
Positive stop adjustable stroke cylinder.
Allows delicate insertion work into light gauge material, aluminum, and plastic.
Limits stroke when precise depth of stroke is required.
Crank assembly with digital read out position indicator.
Built-in batch counter.
Confirms that all holes received fasteners and counts completed parts.
24 inch throat depth.
Allows easy access to large parts.

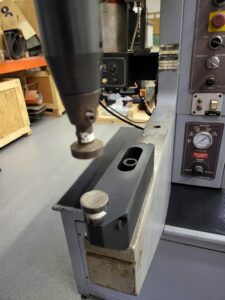

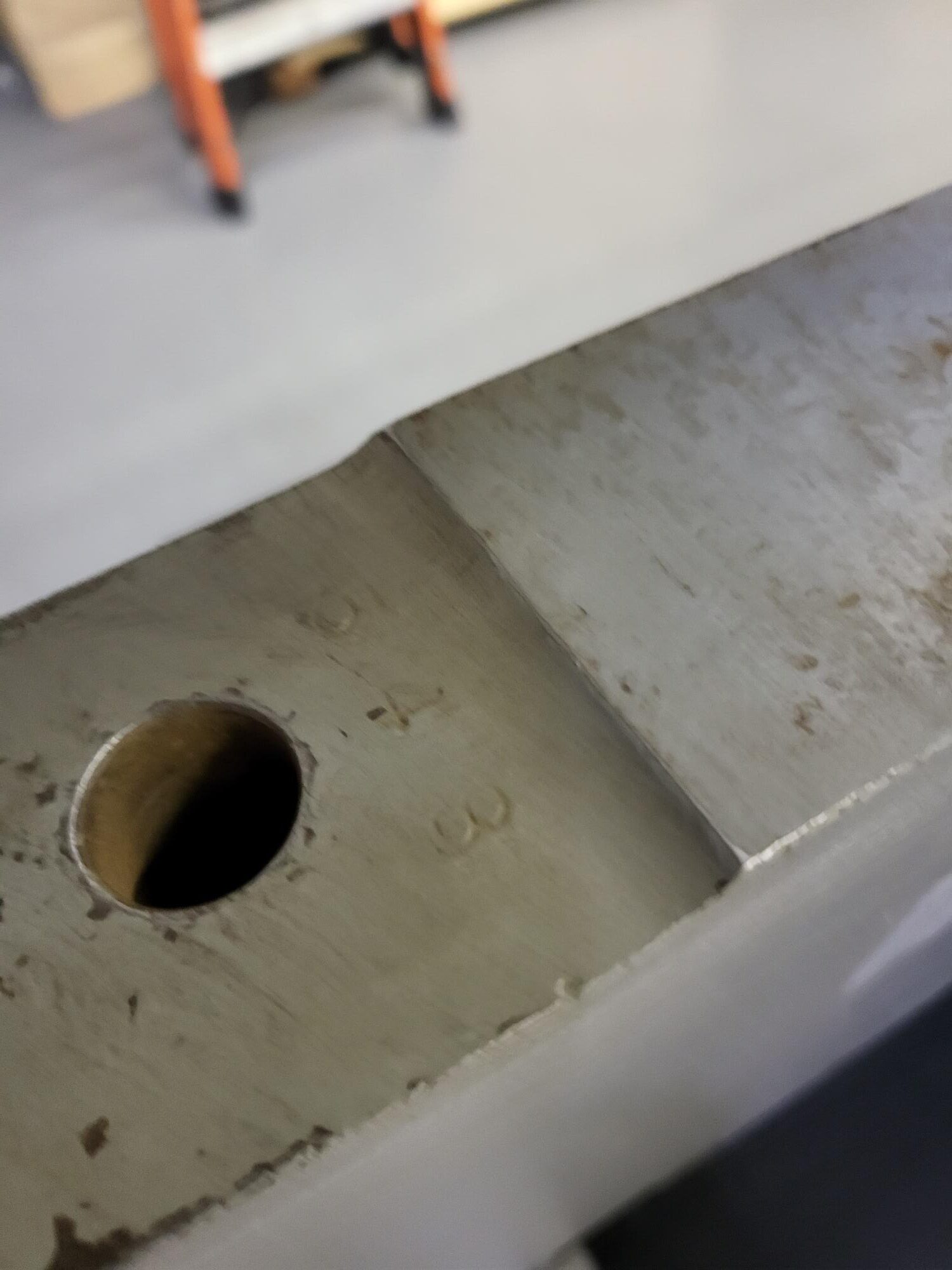

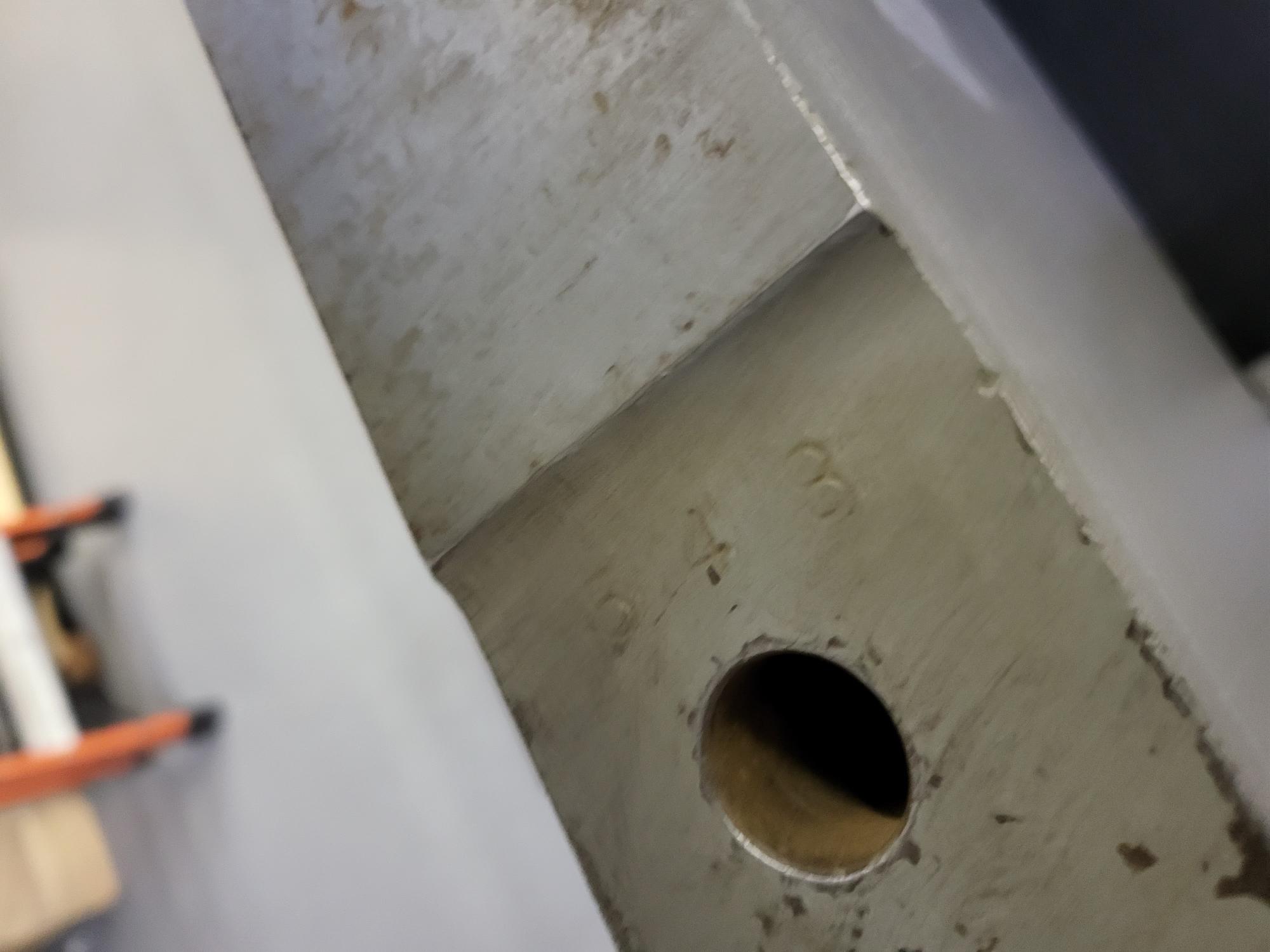

Interchangeable tooling.
Manual and automatic tooling for all Haeger Press models are interchangeable to keep tooling costs low as additional machines are added.
Optional part marking attachment.
Optional corner rounding attachment.
Optional press joining tooling.
